Side Wall Free Hanging Shelf Bracket in Industrial, Aluminum or American Made Steel

The Perfect Solution!

Our Side Wall Free Hanging Shelf Bracket is a concealed support bracket for countertops that do not have a knee wall or pony wall to mount to. This bracket mounts to the inside of the left or right-side cabinet wall.

This bracket has a vertical tang which is welded either to the left or right side of the horizontal piece. The angle placement is determined from the front view where the 45-degree angle is cut.

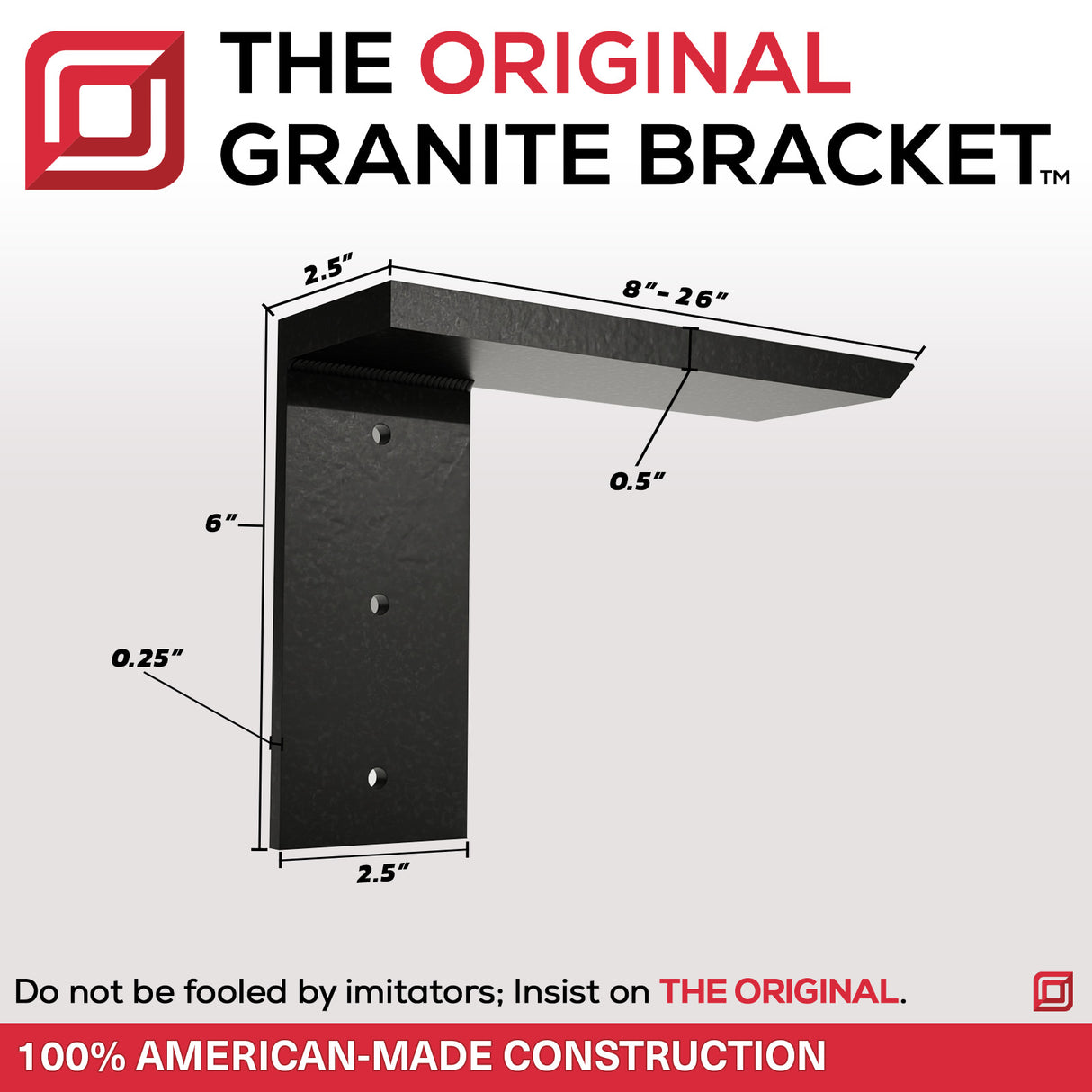

Dimensions:

The horizontal part of the Side Wall Free Hanging Shelf Bracket dimensions is as follows:

Length: [You Choose] this is the total length of the bracket from tip to tip including space for vertical tang. Therefore, a 12-inch bracket is 12 inches from tip to tip. [Vertical tang is not used in determining length]

Width: 2 ½ inches

Thickness: ½ inch

Dimensions for the Vertical Tang [Anchor]:

(Placed on the left or right side)

Length: 6 inches

Width: 2 ½ inches

Thickness: ¼ inch

Hole Diameter: 1/4 inch

How to Determine How May Brackets You Need:

We recommend spacing your bracket 16-20 inches apart for maximum countertop protection, therefore, if your countertop is longer than the 20 inches recommended spacing you can use the Hidden Island Support Bracket, Knee Wall Bracket, or L Bracket in conjunction with this Side Wall Bracket to protect your countertop investment.

Exceptional Features:

• Hardware Included.
• Virtually invisible giving your granite countertop the appearance of floating.
• Non-intrusive. No corbels needed. No knee-knocking.
• Completely open space allowing room for chairs and legs.
• An economical way to protect your countertop investment.
• Easy to install.
• Made of ½ inch thick by 2 ½ inches wide Solid American Metal welded for strength.
• Bracket end has a beveled edge for safety.
• Screw holes are placed on the vertical piece.
• Brackets may be painted with any anti-rust spray paint.
• Made in the USA.
• Limited Lifetime Warranty**
• All of our Aluminum brackets are painted with a double coat of rust inhibitor black paint.

Helpful Information & Downloads:

• Shipping information will be available upon order placement.
• For orders exceeding 20 brackets or a general breakdown of how our shipping works check out our Shipping Policy for lead time.
• Although we have standard sizes, we can manufacture special order brackets with specifications to your request.

Have questions or need assistance? Contact our dedicated customer service team at 904-217-8490 or email sales@cswpros.com
