GoBoard Wedge Shower Kits

GoBoard® Shower Kit – Versatile & Affordable Shower Waterproofing Solution

Upgrade your bathroom renovation with the GoBoard® Shower Kit, a lightweight, waterproof, and durable system designed for easy installation. Whether you need a center drain  offset drain or  curbless configuration, this kit provides a flexible solution to accommodate multiple shower sizes—all while maintaining a strong and reliable foundation.

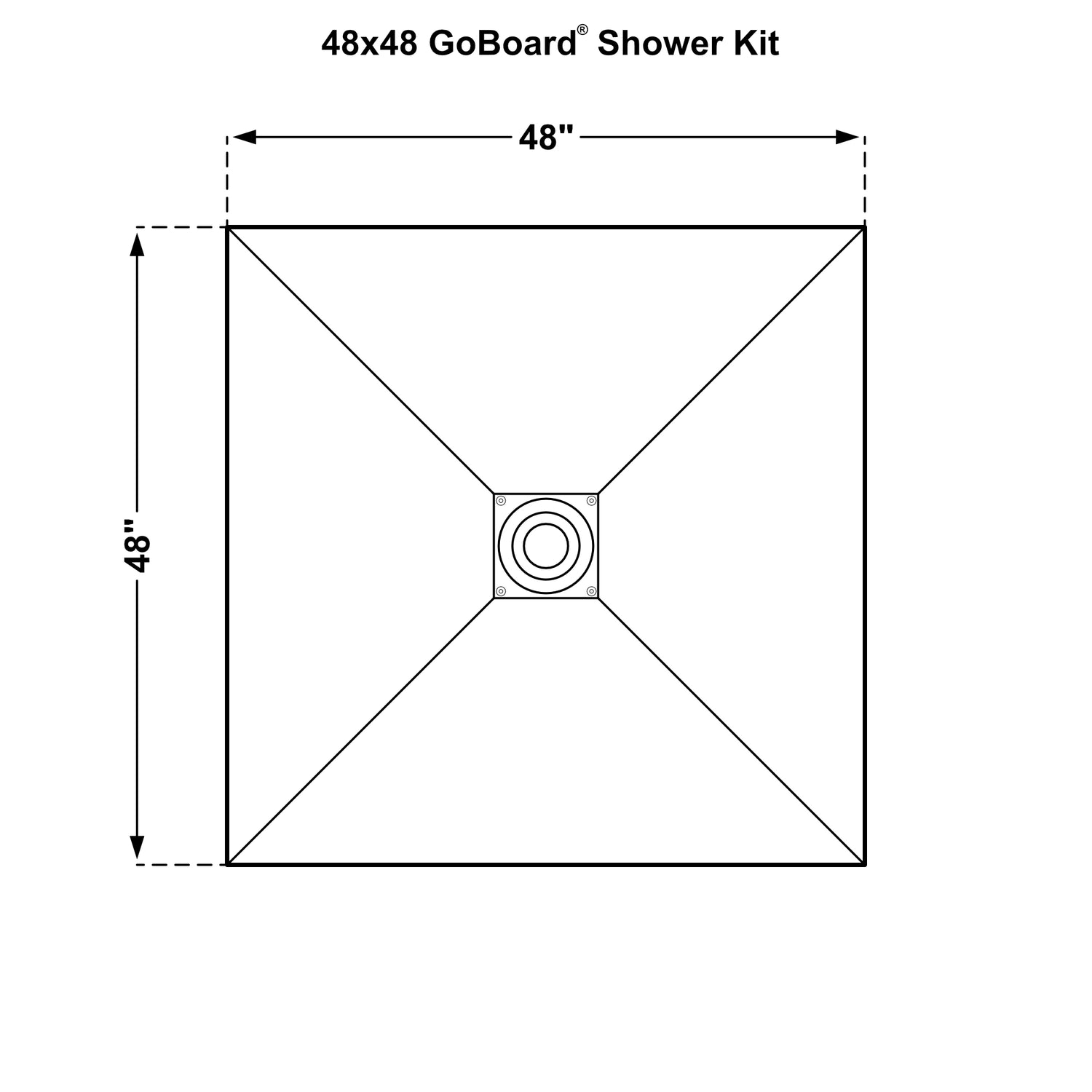

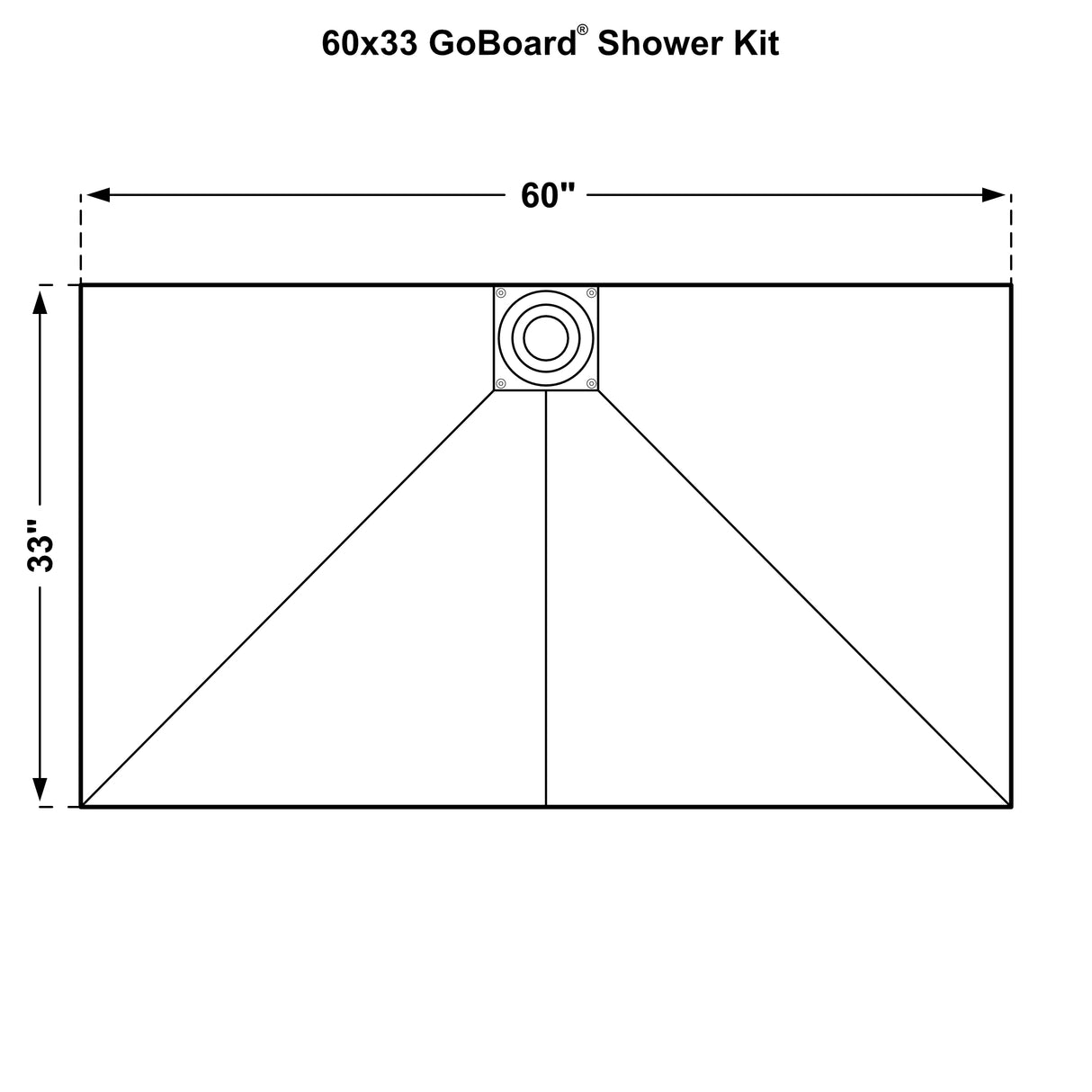

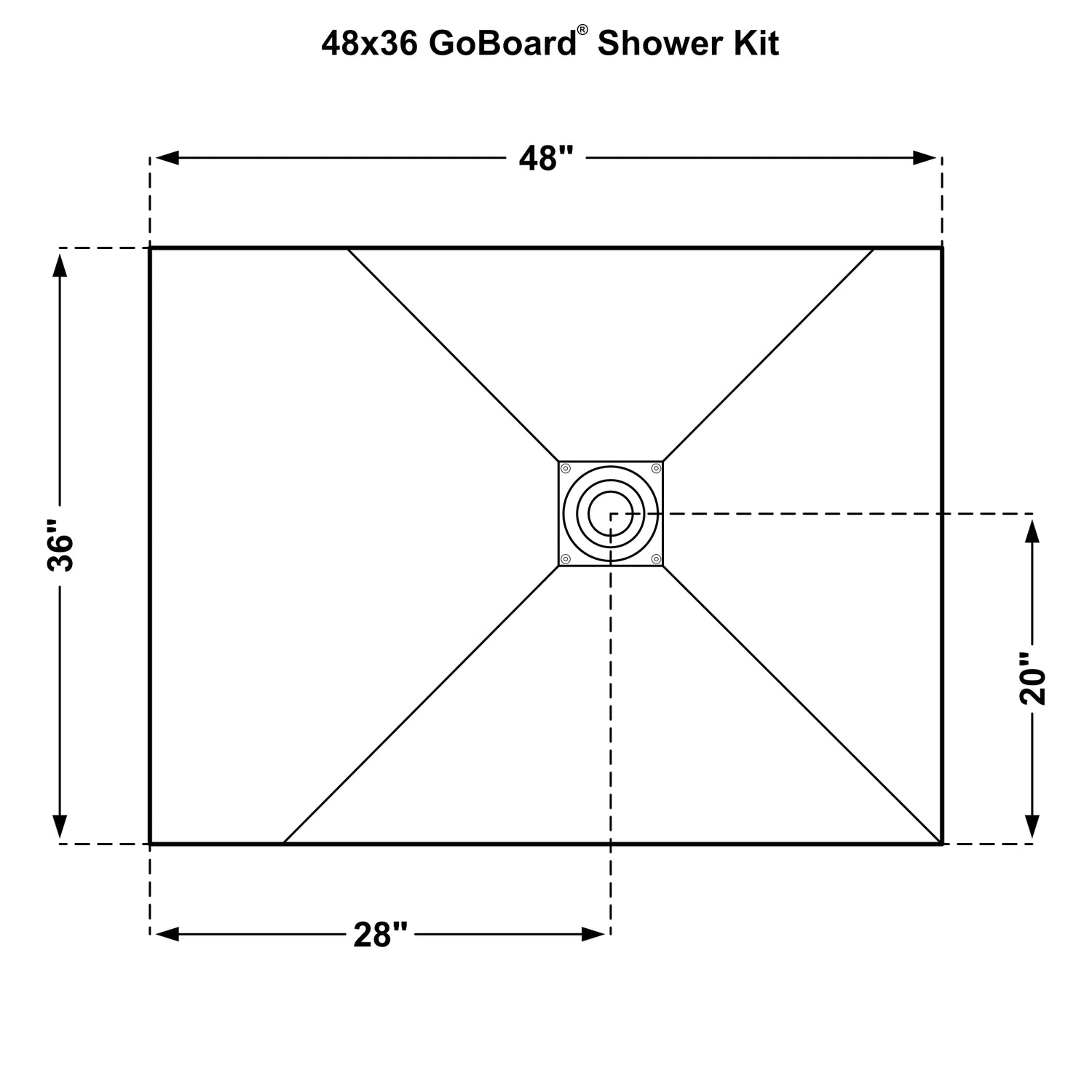

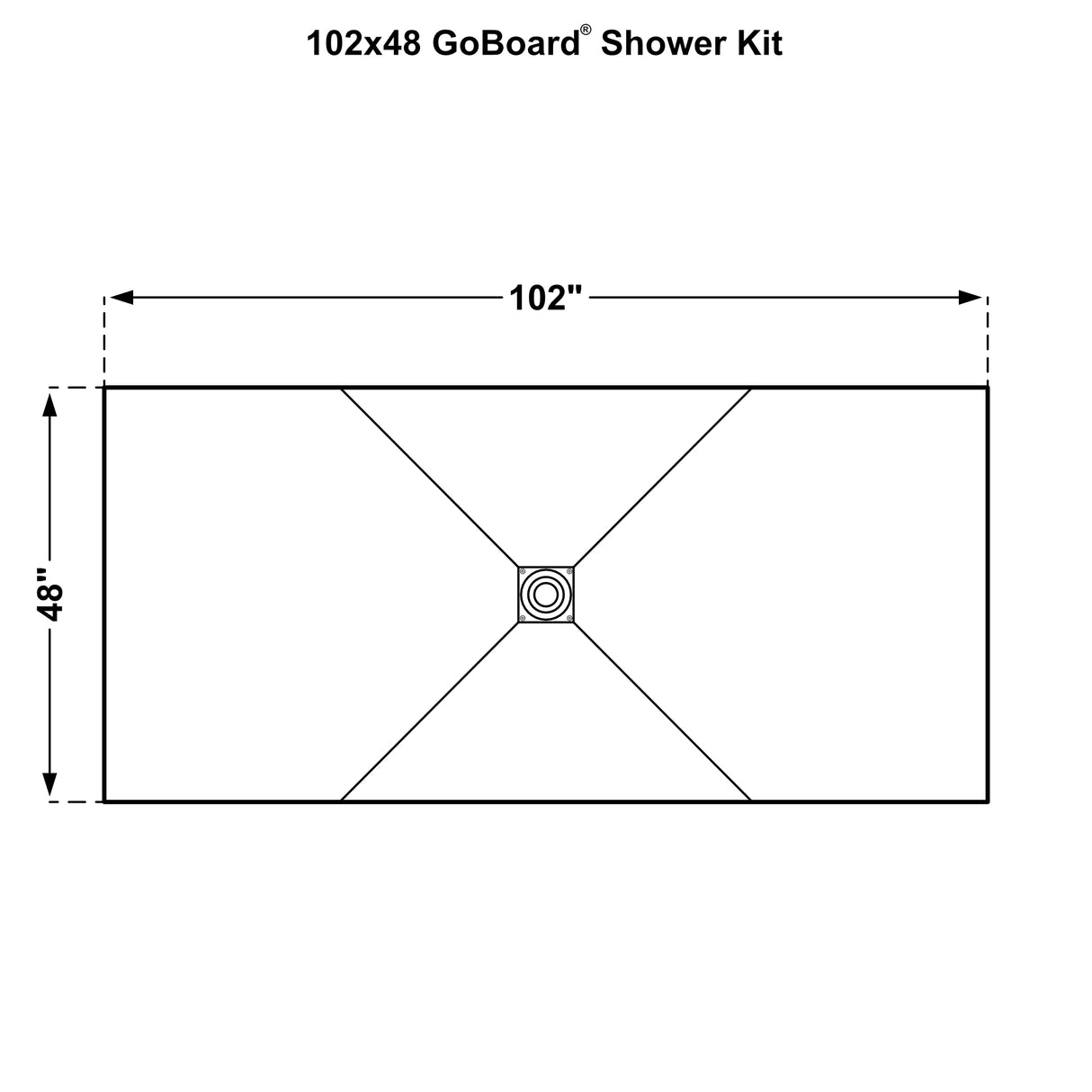

Recommended Shower Pan Sizing

The GoBoard Wedges (46” x 46”) offer customizable shower base configurations including:

• 44” x 44”

• 44” x 100”

• 33.8” x 44”

• 31.7” x 57.84”

Don’t worry if you need a size not listed above. The GoBoard Shower Kit is customizable to fit your exact shower dimension needs. All you need to do is cut them to fit your space.

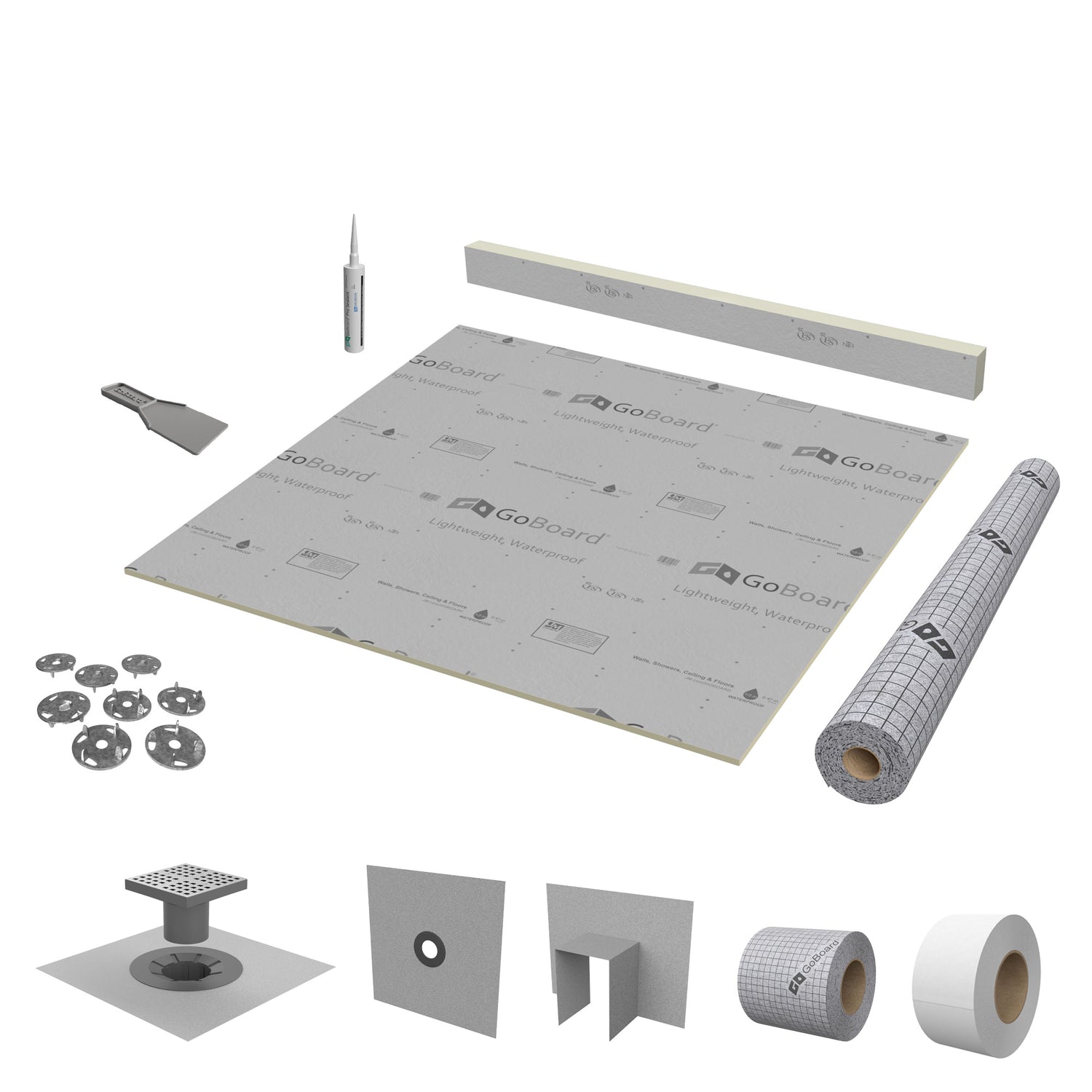

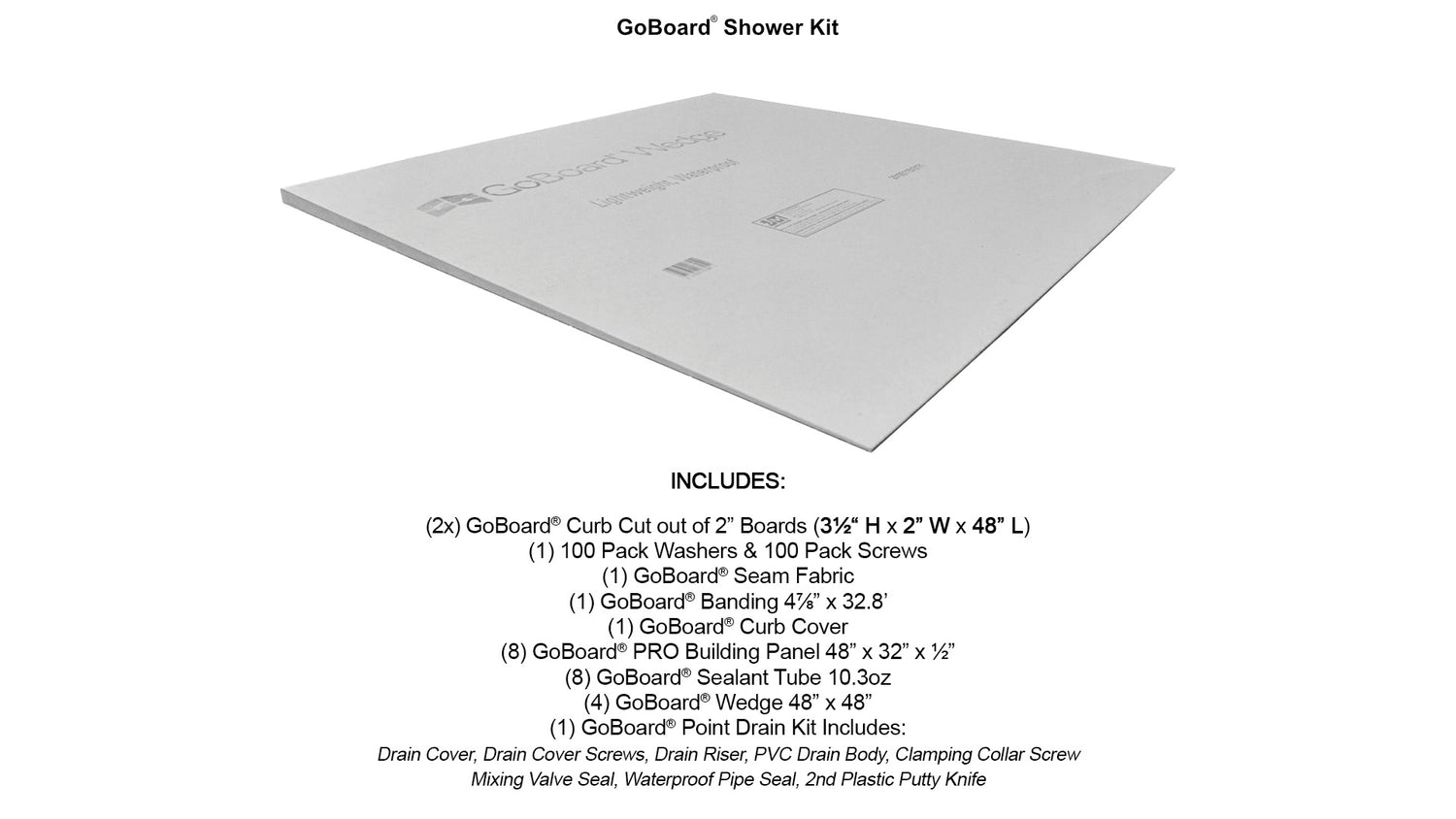

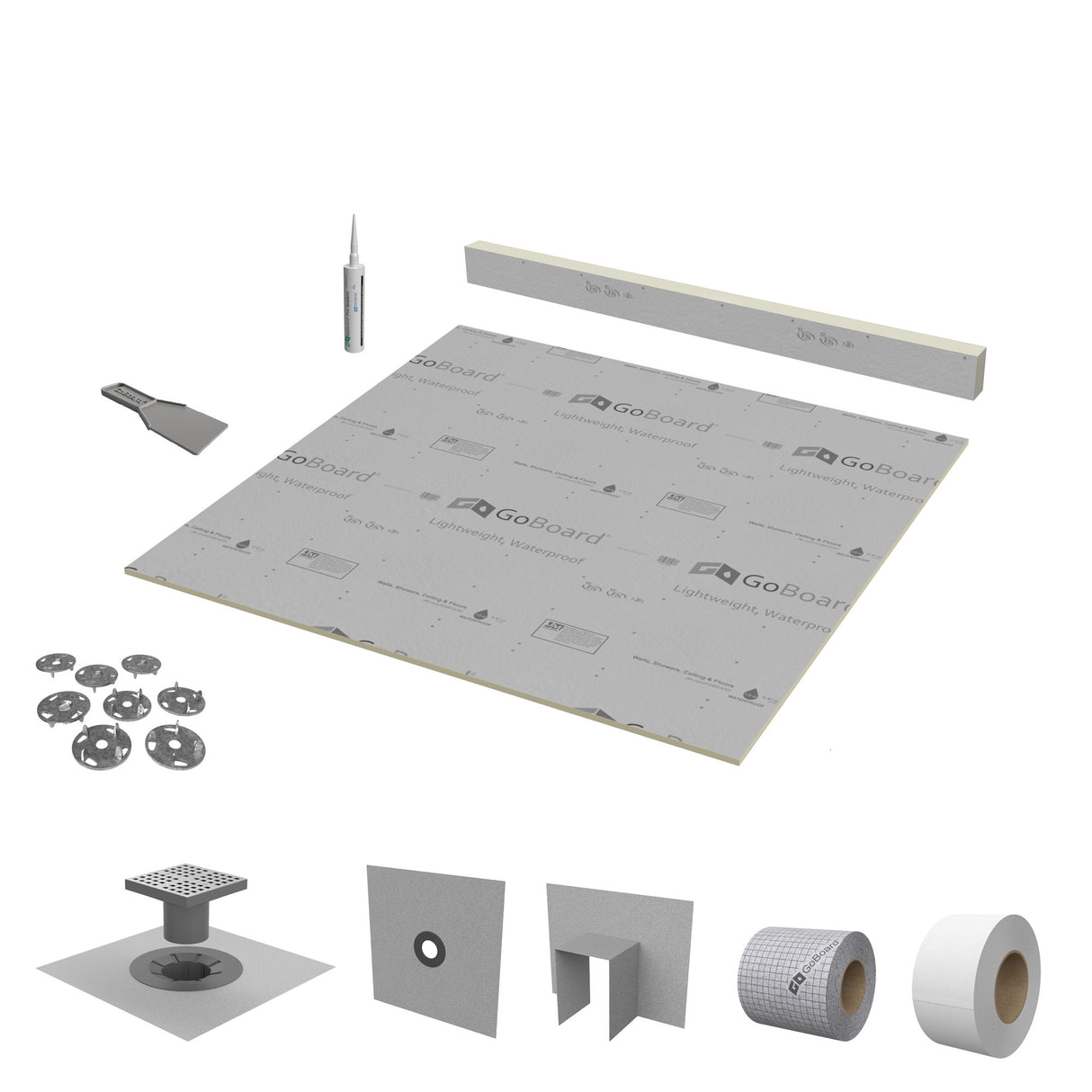

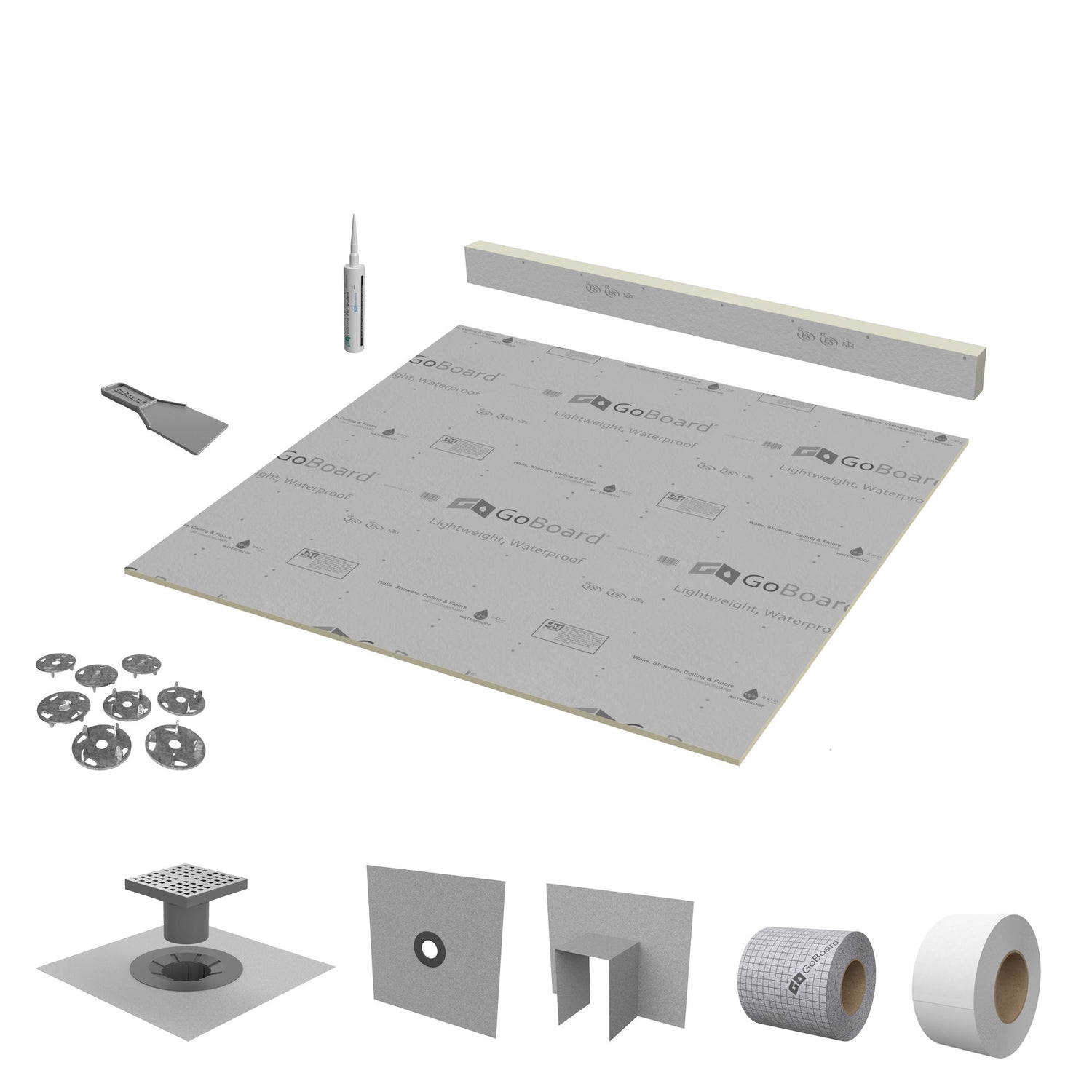

What’s Included in the GoBoard® Shower Kit?

✔ (4) GoBoard Wedges – 46” x 46” for customizable shower bases
✔ (8) GoBoard PRO Building Panels – 46” x 32” x ½” for waterproof wall construction
✔ (2) GoBoard Curbs – Made from 2” boards (3 ½” H x 2” W x 46” L)
✔ (8) GoBoard Sealant Tubes – 10.3oz for creating a waterproof seal
✔ (1) GoBoard Seam Fabric – Reinforces seams for added durability
✔ (1) GoBoard Banding – 4 ⅞” x 32.8’ for sealing corners and joints
✔ (1) 100-Pack Washers & Screws – Securely fasten panels in place
✔ (1) GoBoard Point Drain Kit – Includes everything needed for proper drainage:

• Drain Cover & Screws
• Drain Riser & PVC Drain Body
• Clamping Collar Screw
• Mixing Valve Seal & Waterproof Pipe Seal
• Second Plastic Putty Knife



Why Choose the GoBoard® Shower Kit?

✔ Lightweight & Durable – Easy to handle and install
✔ Fully Waterproof – Provides long-lasting moisture protection
✔ Customizable & Cut-to-Fit – Adapt to various shower layouts
✔ Fast Installation – No waiting for mortar to cure
✔ Affordable & Reliable – A cost-effective solution for DIYers and professionals

Transform your bathroom with the GoBoard® Shower Kit—a simple, strong, and waterproof solution for a hassle-free shower renovation.

Quick Links:

• FAQ
• Shipping Policy
• Instruction PDF

GoBoard Shower Kit will be a versatile solution for those seeking an affordable shower kit for their bathroom renovation. GoBoard wedges come in 48 inches x 48 inches. But don’t worry despite the single size the shower pan wedges offer multiple sizes. Using the 48 inches x 48 inches wedge you can create up to 48 inches x 102 inches shower base for center drains. When using an offset drain you can create a 36 inches x 48 inches. Need something bigger? Try 33 inches x 60 inches. These are the recommended sizes from GoBoard. GoBoard wedges can be cut to multiple sizes depending on what you need for your shower renovation. What’s included in the kit is: (2x) GoBoard Curb Cut out of 2” Boards (3 ½ Height x 2 Width x 48 Length); (1) 100 pack Washers and Srews; (1) GoBoard Seam Fabric; (1) GoBoard Banding 4 ⅞” x 32.8’; (8)GoBoard Sealant Tube 10.3oz; (8) GoBoard PRO Building panels 48” x 32” x ½”; (4) GoBoard Wedge 48” x 48”; (1) GoBoard Point Drain Kit which Includes: Drain Cover, Drain cover screws, Drain riser, PVC Drain Body, Clamping Collar Screw, Mixing valve seal, waterproof pipe seal, 2nd Plastic Putt Knife.
