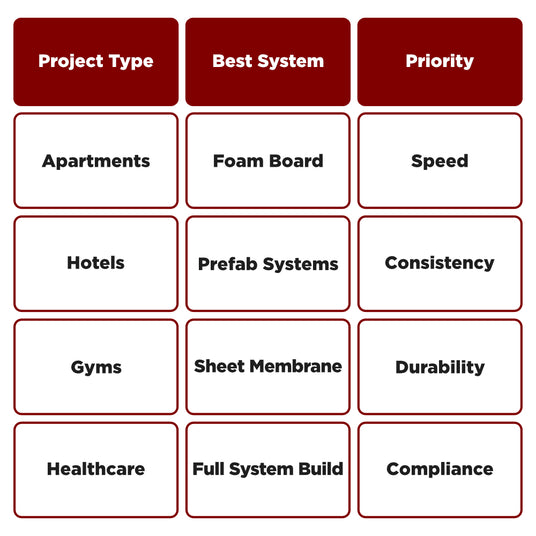

Best Waterproofing Systems by Project Type
Wall Systems
Foam boards or membrane-backed systems provide:
- Structural support
- Waterproofing layer
- Faster install times
Drain Systems
Drains are one of the most critical points in the entire system.
- Linear drains → easier slope, modern design
- Center drains → cost-effective, traditional
Benches & Niches
Prefabricated options:
- Save time
- Reduce waterproofing risk
- Improve consistency across installs
Key Insight:
The most successful commercial projects use complete, compatible systems, not a mix of unrelated products.
Where Commercial Showers Fail the Most?
Most failures don’t happen in the middle of a wall—they happen at connections and transitions.
Common Failure Points
- Seam failures between panels or membranes
- Wall-to-floor transitions
- Drain connections
- Fastener penetrations
- Niches and benches
Transition Points Are the Weakest Link
Transition points from the tub or shower pan to the wall are especially critical.
These areas are not waterproof on their own. They only become waterproof when the system is installed correctly and fully sealed.
If these areas are rushed or inconsistently installed:
- Water intrusion occurs
- Damage spreads behind walls
- Issues multiply across units
How to Prevent Failures
- Use a complete waterproofing system
- Standardize installation across all crews
- Train installers on one method
- Perform flood testing before tile installation
How to Standardize Installation Across 10–100+ Units
One of the biggest challenges in multi-unit construction isn’t just choosing the right system—it’s making sure it’s installed the same way across every unit.
Even a small variation in installation between crews can lead to inconsistent results, delays, or failures that repeat throughout the project.
Start With a Mockup Unit
Before scaling across the entire project, it’s best practice to:
- Build one complete bathroom or shower system
- Test the full installation process
- Identify any issues early
This mockup becomes your reference standard for the rest of the project.
Lock in One System and One Method
Switching systems or methods mid-project creates confusion and increases the risk of mistakes.
For large-scale projects:
- Choose one waterproofing system
- Use the same materials across all units
- Keep installation steps consistent
This reduces variability and makes it easier for crews to stay efficient.
Train Crews on a Repeatable Process
Consistency comes from repetition.
Instead of relying on different crews using different techniques:
- Train all installers on the same system
- Provide clear installation guidelines
- Use the manufacturer's instructions as the baseline
The goal is to make every install as close to identical as possible.
Quality Control at Each Stage
Don’t wait until the end of the project to catch mistakes.
Implement checkpoints such as:
- Pre-install inspections (subfloor, framing)
- Waterproofing inspections before tile
- Flood testing before finishing
Catching issues early prevents them from being repeated across dozens of units.
Key Takeaway:
The most successful commercial projects aren’t just built well—they’re built consistently.
Cost vs Labor: Choosing the Right System for Large Projects
When evaluating waterproofing systems, many contractors focus on material cost first. But in commercial construction, labor is often the bigger expense.
Lower Material Cost Doesn’t Always Mean Lower Project Cost
Traditional systems like cement board may appear cheaper upfront, but they often require:
- More installation time
- Additional waterproofing steps
- More opportunities for errors
This can increase overall project costs due to:
- Higher labor hours
- Slower timelines
- Increased risk of rework
Faster Systems Reduce Labor Costs
Modern systems like foam boards and prefabricated components are designed to:
- Reduce installation steps
- Speed up workflow
- Simplify training across crews
This leads to:
- Faster project completion
- Lower labor costs
- More predictable timelines
Long-Term Cost Considerations
Cutting corners on waterproofing can lead to costly problems later, including:
- Water damage repairs
- Mold remediation
- Tenant disruption in multi-unit buildings
Investing in a reliable system upfront helps prevent these issues and protects your reputation as a contractor.
Key Insight:
In large projects, the goal isn’t just to save on materials—it’s to reduce total project cost and risk.

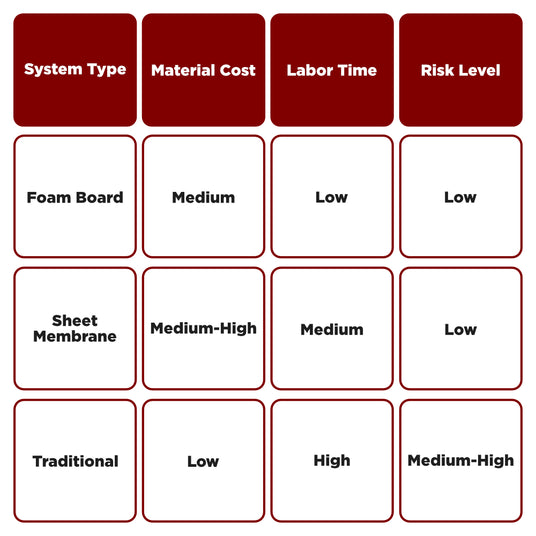

Waterproofing System Comparison: Cost, Labor Time & Installation Risk
Recommended Systems for Commercial & Multi-Unit Projects
Choosing the right system depends on your project type, timeline, and crew experience. Below are some commonly used solutions in commercial construction.
Complete Shower Systems
Complete systems are designed to work together and include:
- Shower pans
- Waterproof boards or membranes
- Drains
- Accessories like benches and niches
These systems help:
- Reduce installation errors
- Improve consistency across units
- Simplify training for crews
Waterproof Boards
Foam-based waterproof boards are widely used in commercial projects because they:
- Combine structure and waterproofing
- Install faster than traditional methods
- Easier to cut and handle on-site
They are especially useful for:
- Apartments
- Condos
- Large residential developments
Drain Systems
Drain selection plays a major role in both performance and installation.
Linear drains:
- Easier to Slope
- Ideal for Curbless Showers
- Common in Modern Commercial Design
Center drains:
- Cost-effective
- Traditional Installation
- Suitable for Standard Layouts
Benches & Niches
Prefabricated benches and niches help reduce risk by:
- Eliminating the need for custom framing
- Simplifying waterproofing
- Saving installation time
They are especially valuable in multi-unit projects where consistency is critical.
Key Insight:
Using compatible components from a single system helps ensure long-term performance and reduces installation complexity.
