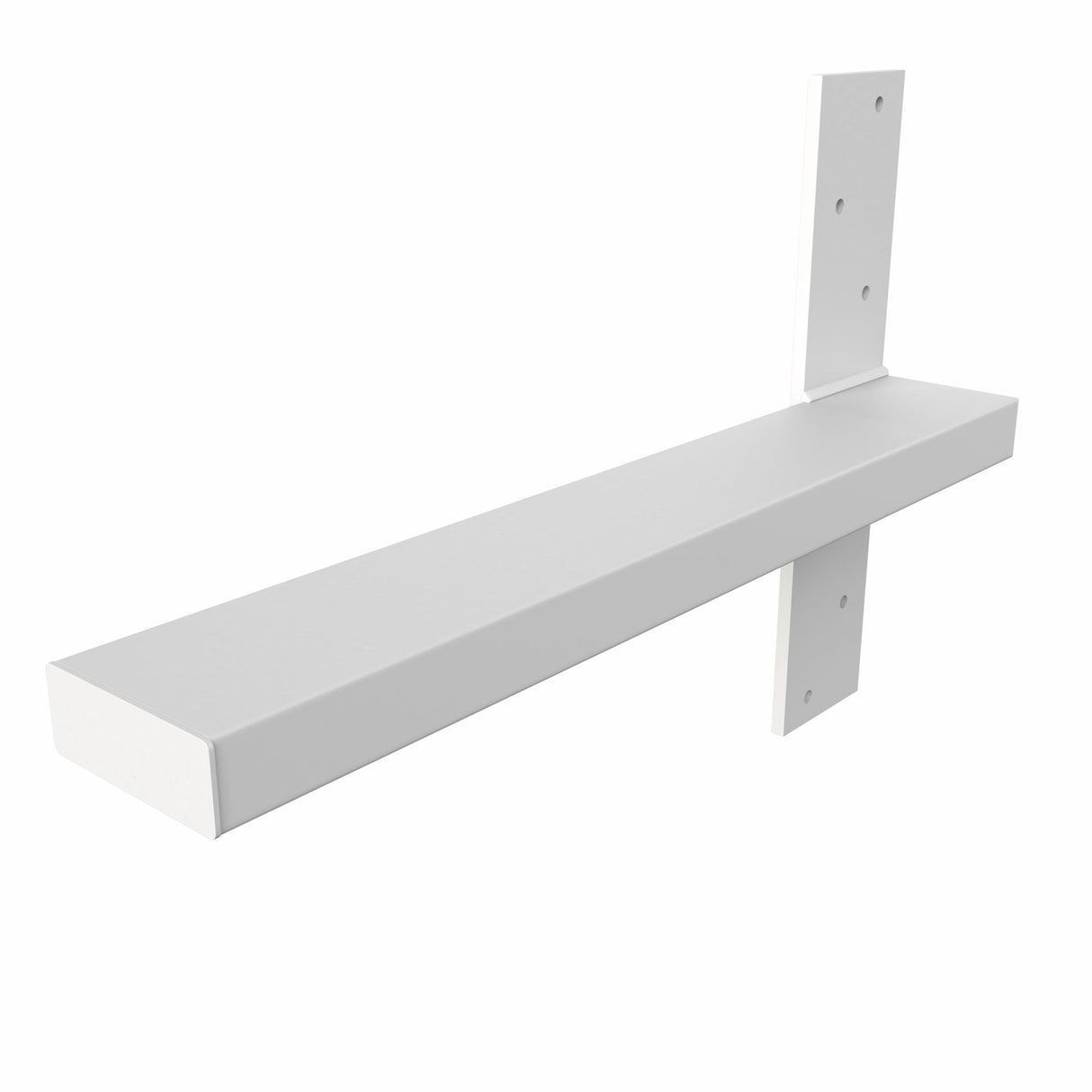

The Original Floating Vanity Bracket®

Invisible Support for Floating Vanities

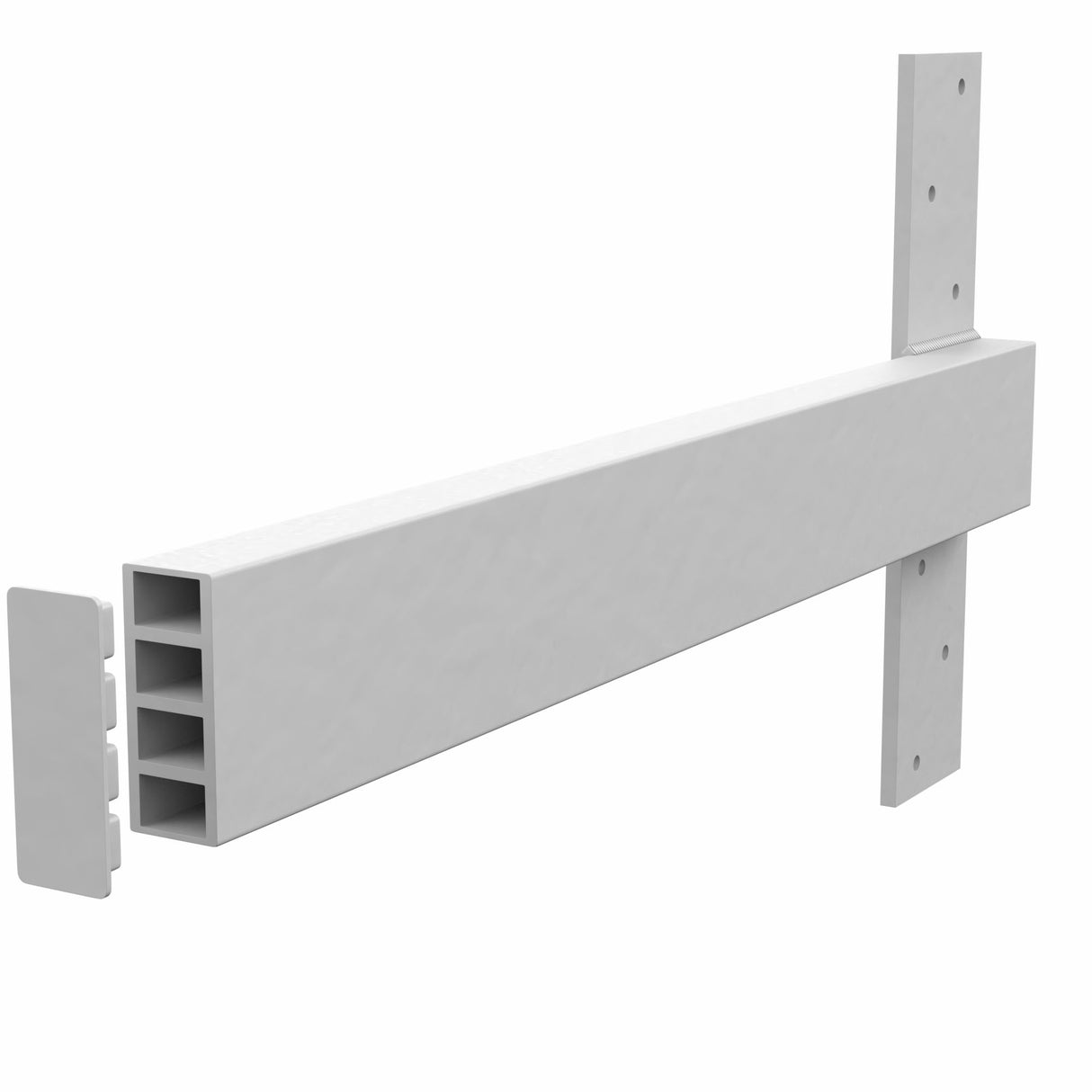

The Original Vanity Bracket® is the perfect concealed support for floating vanities, offering sleek, durable support in both moisture-prone environments like bathrooms and more traditional spaces. Crafted from Industrial Ribbed Aluminum, this bracket provides rust-proof strength, making it ideal for interior or exterior installations.

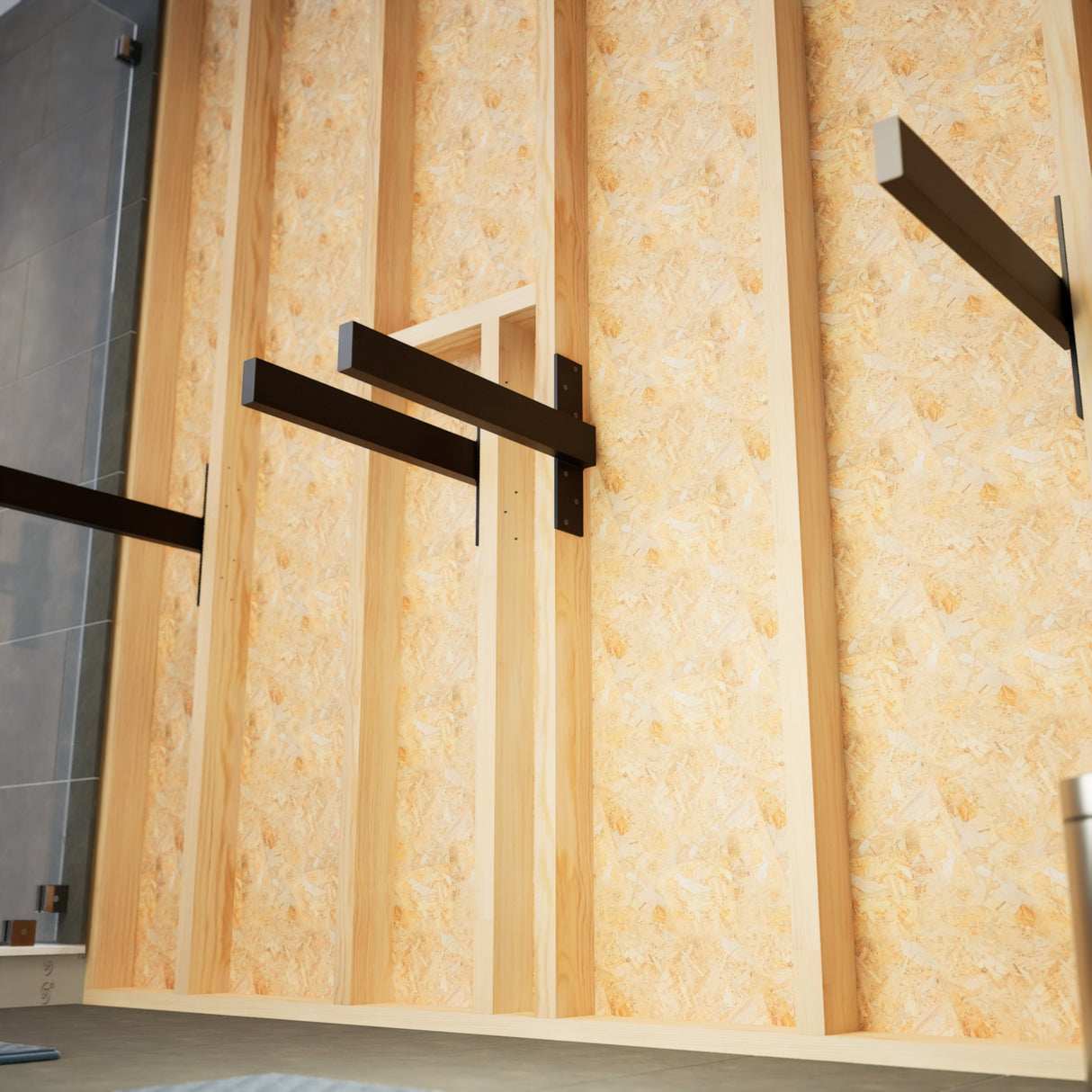

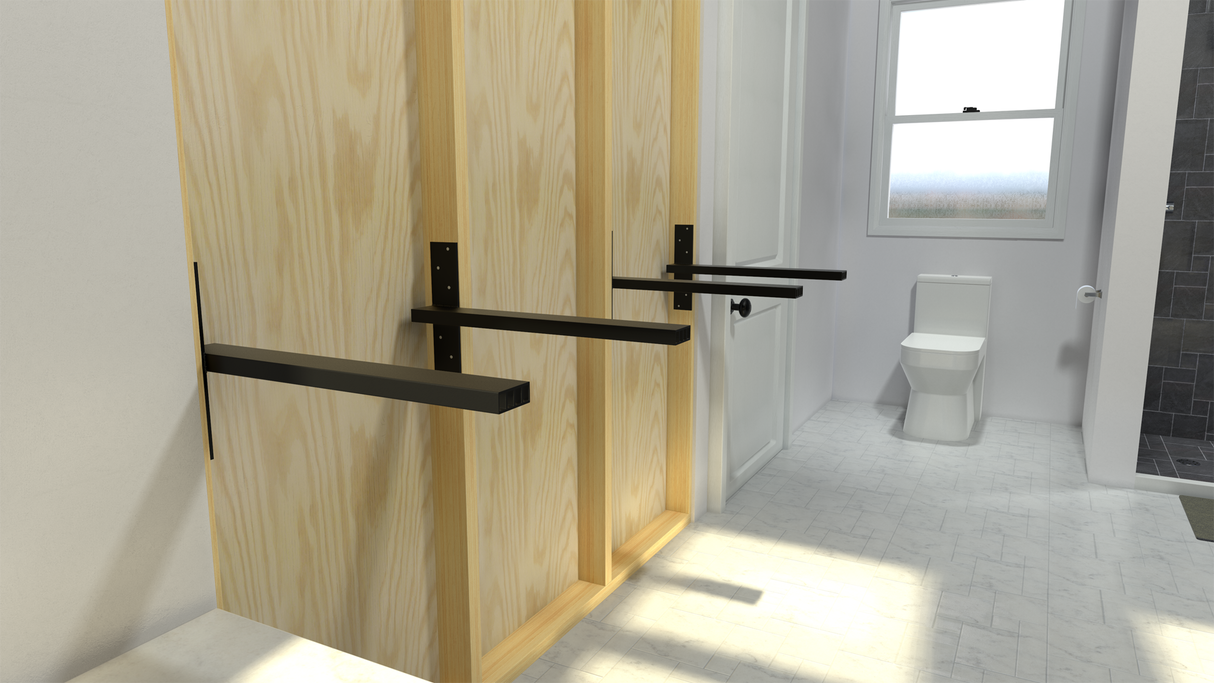

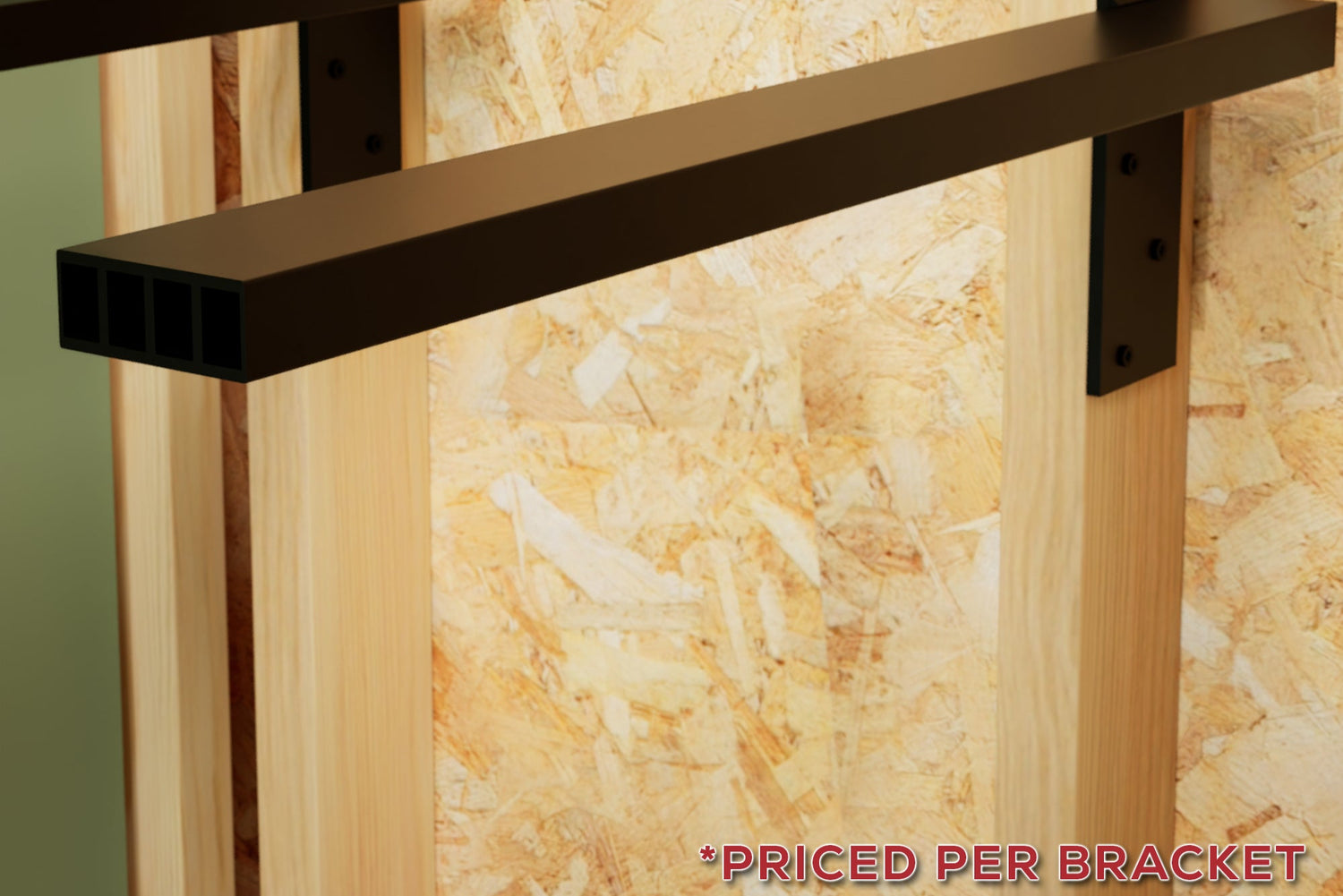

Designed to mount directly to 2x4 wood studs before drywall or tile installation, this bracket ensures your vanity stays securely in place. For maximum stability, it is essential to fasten the bracket into each 2x4 stud. If your studs are metal, please refer to the installation video for special instructions.

Note: This bracket is designed to support overhangs ranging from 18 to 26 inches.

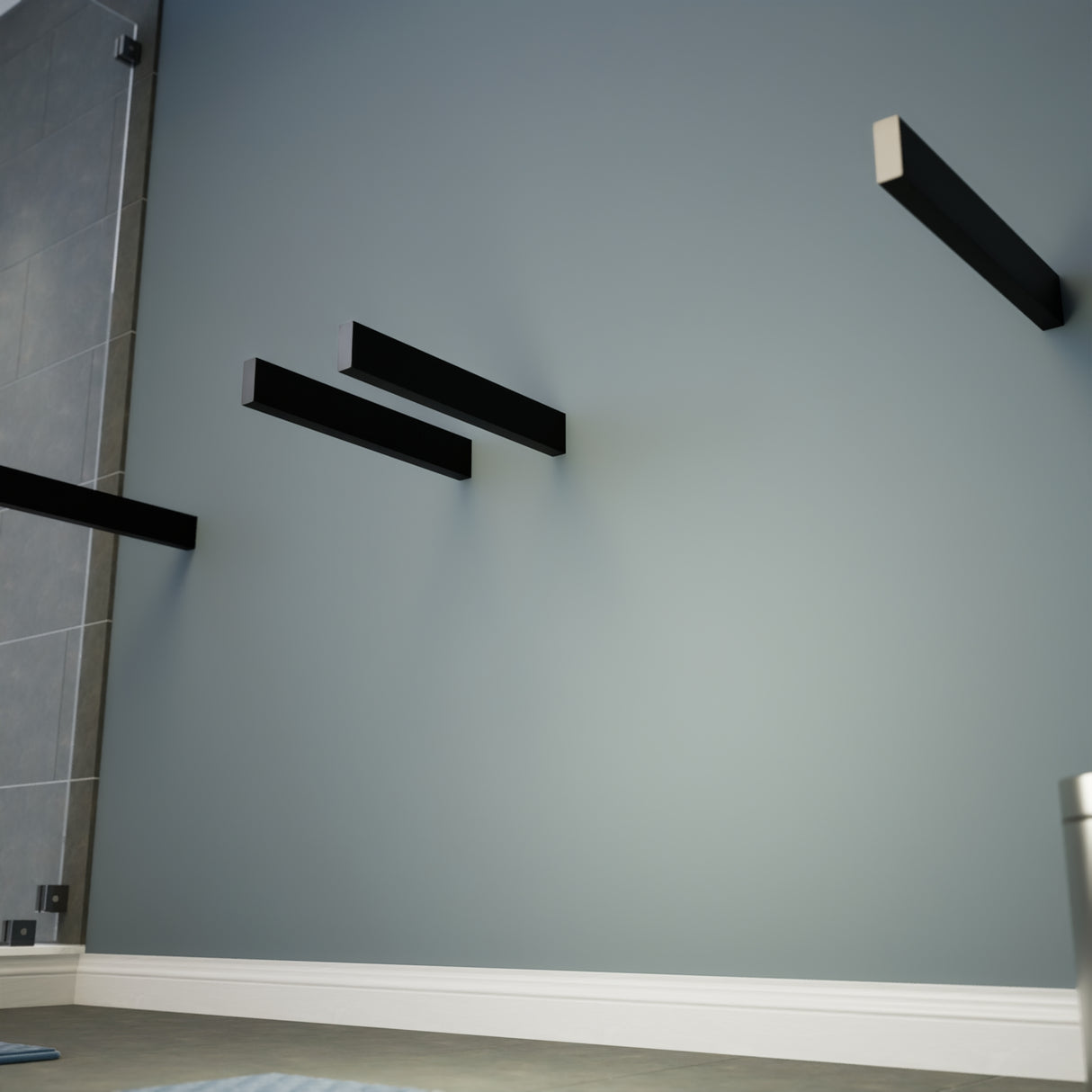

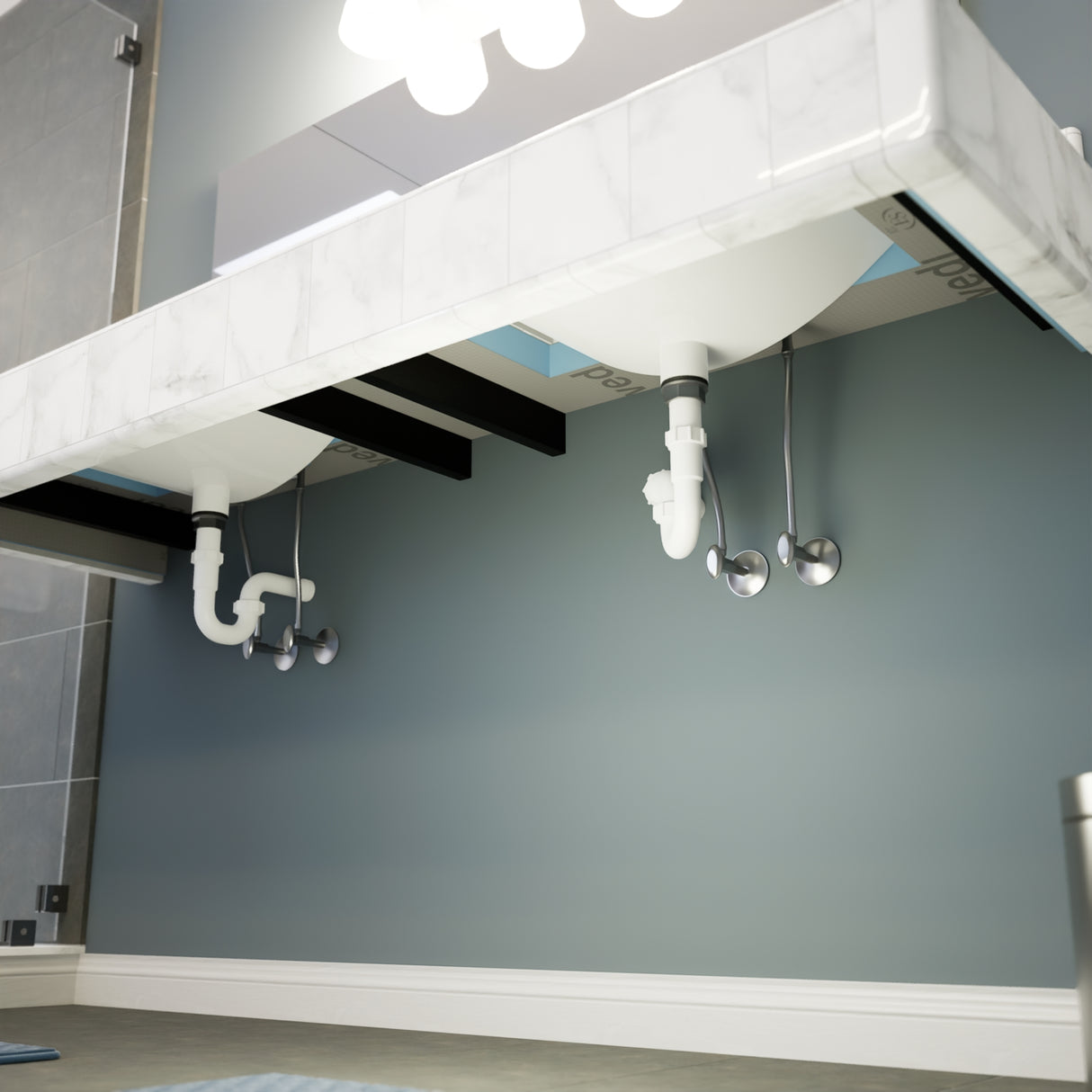

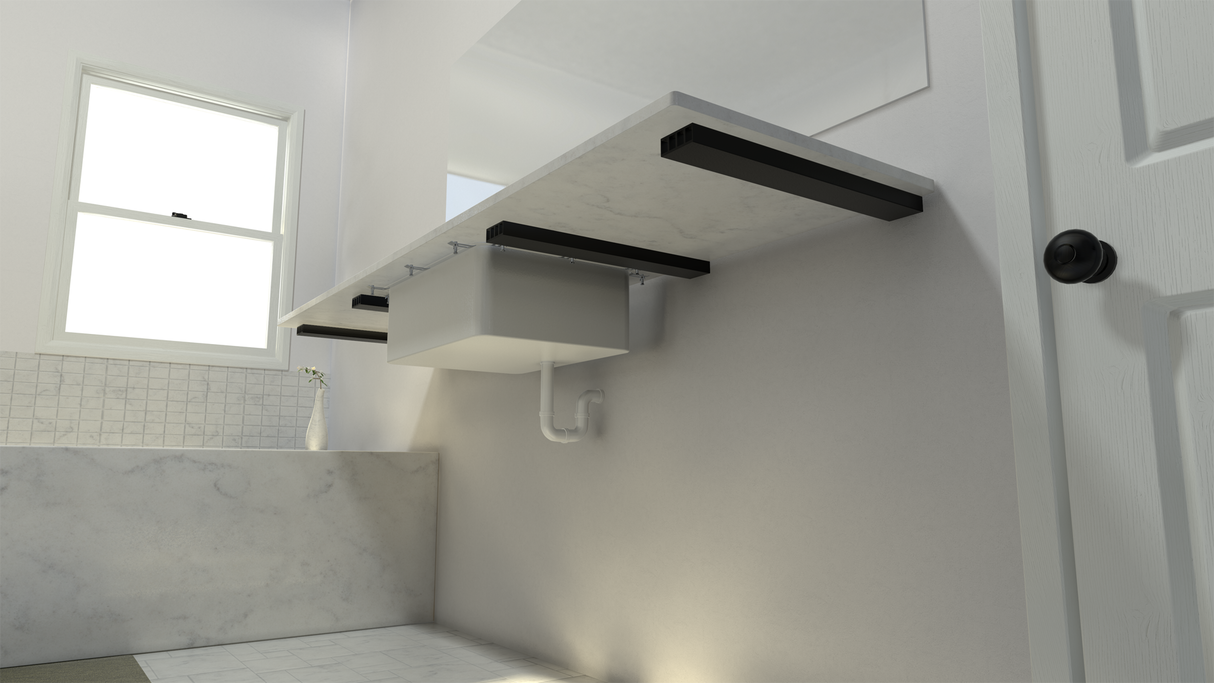

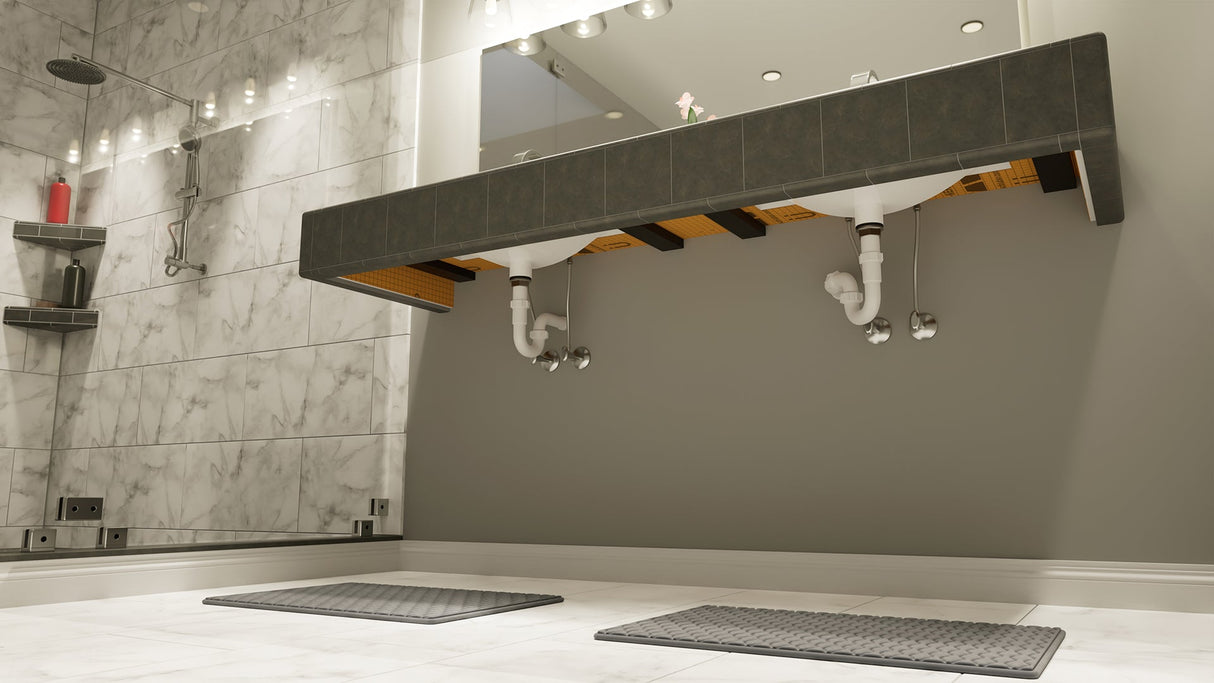

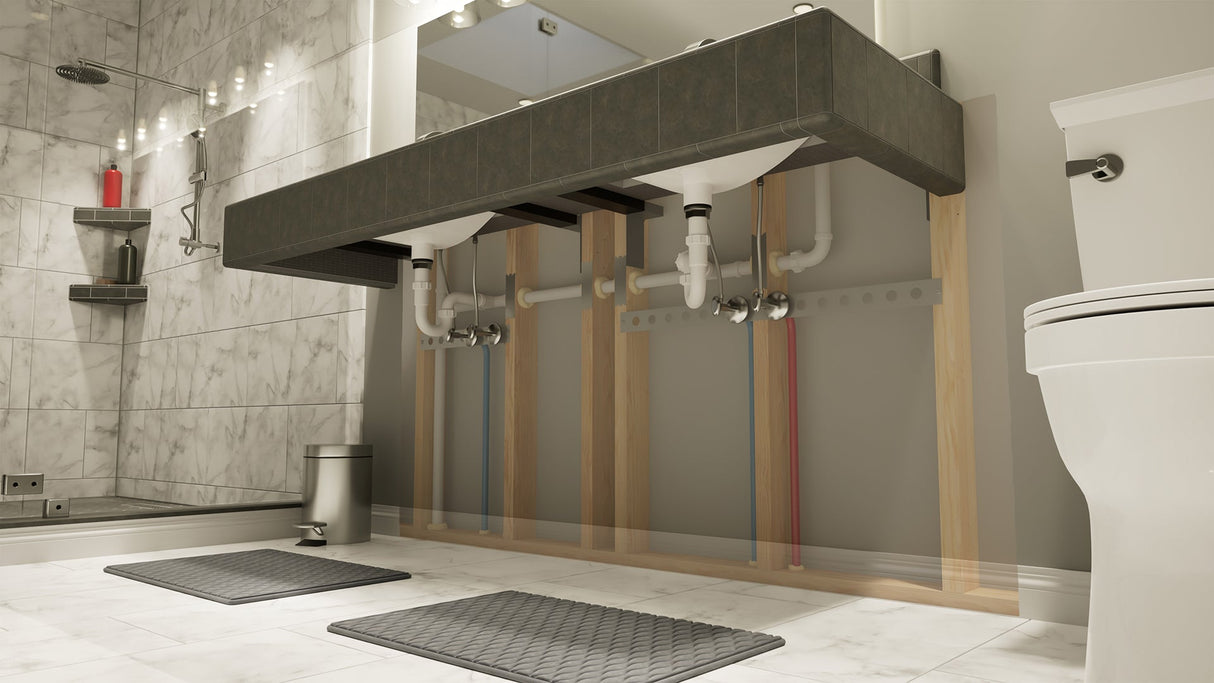

The vertical tang adds reinforcement by mounting both above and below the horizontal piece, preventing twisting and ensuring the vanity remains stable. Once installed, you can finish the wall with your chosen material, creating a seamless, floating appearance for the vanity.

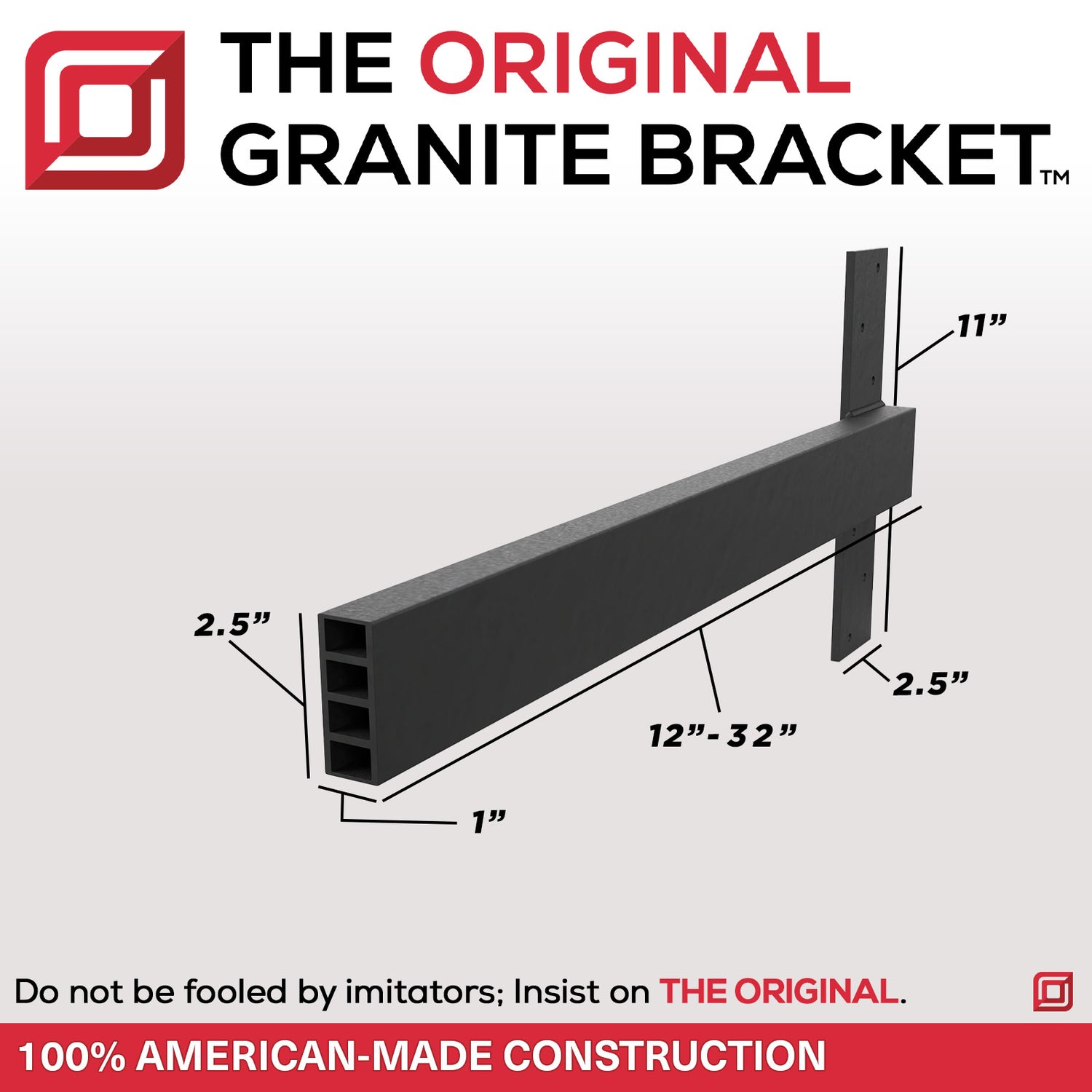

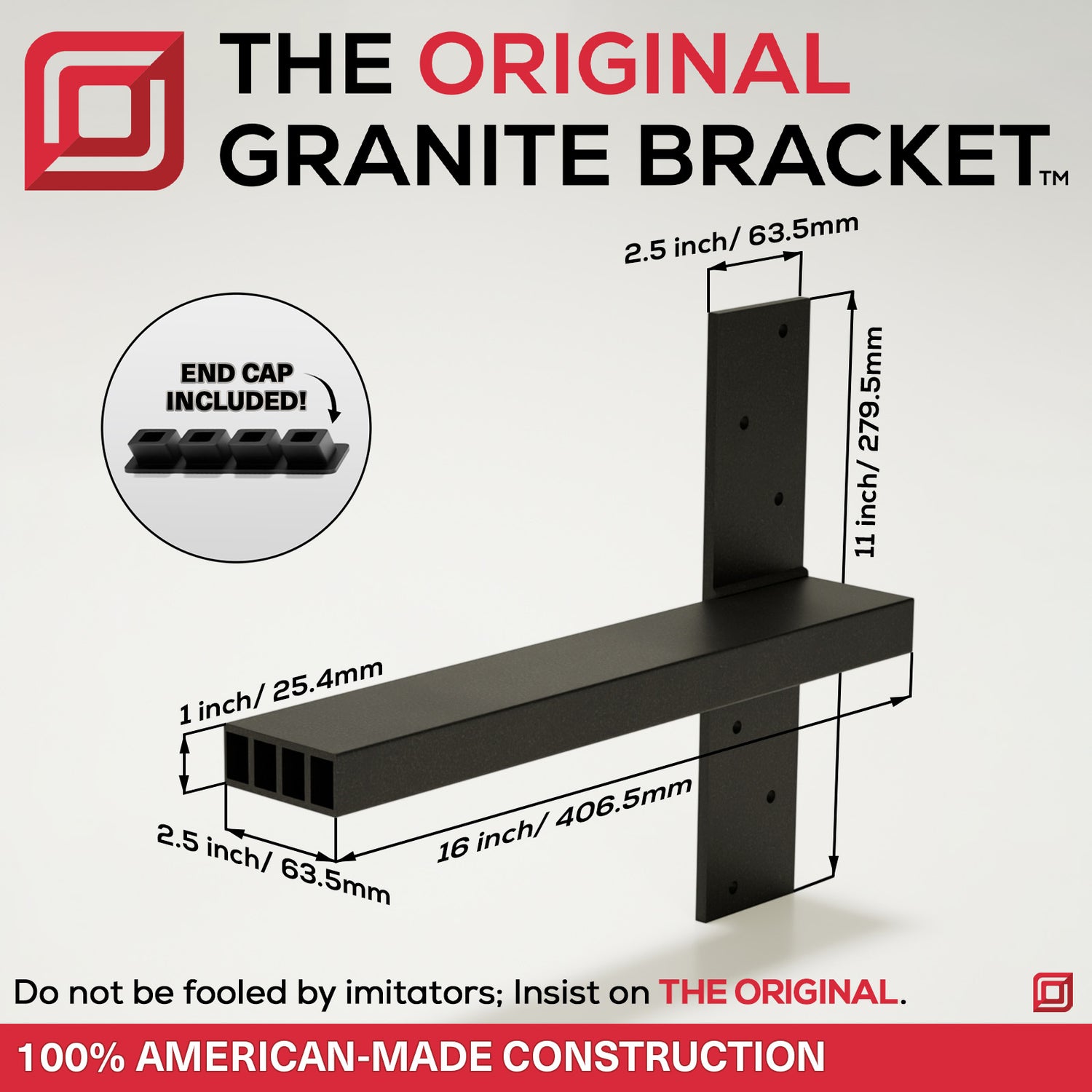

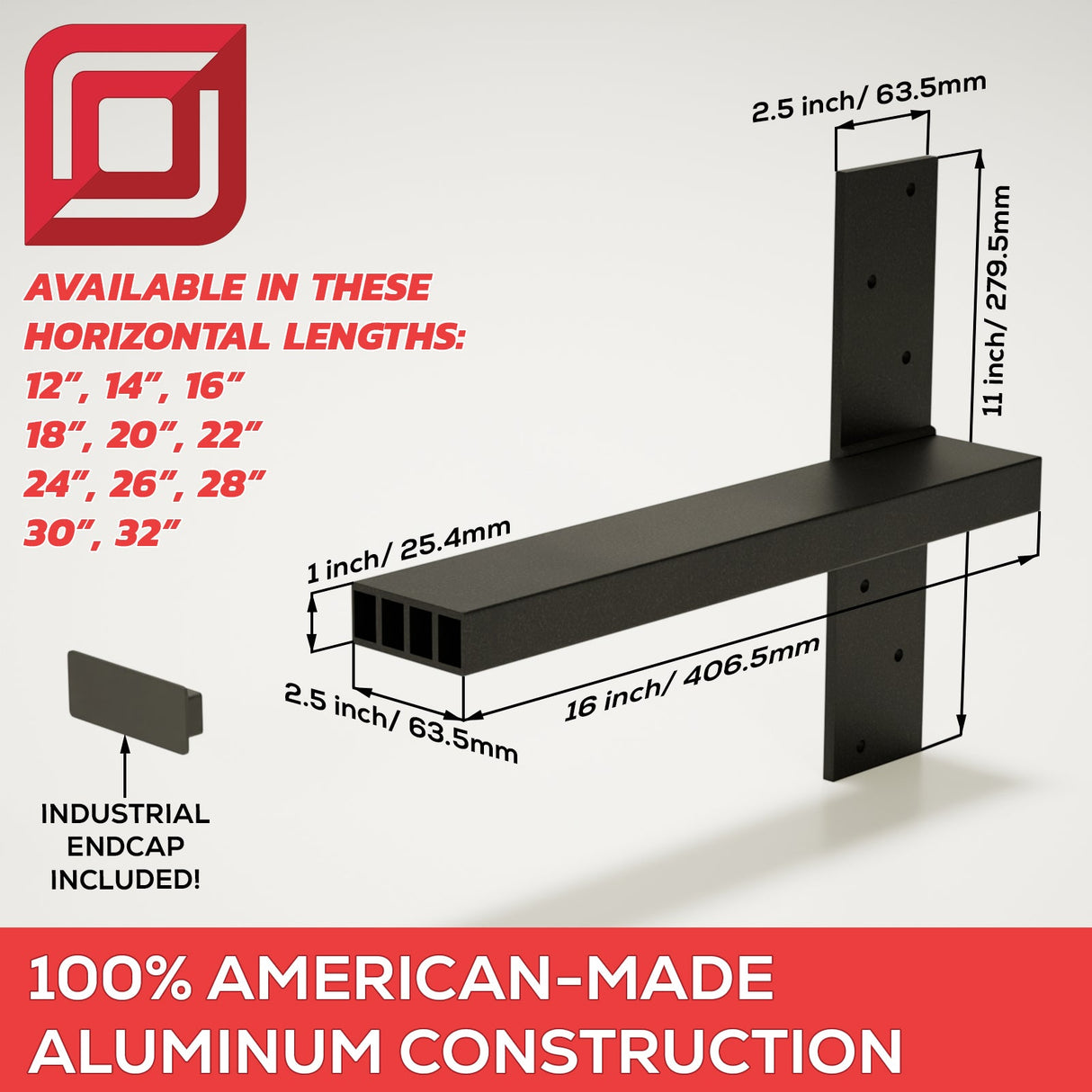

Bracket Dimensions:

• Horizontal Piece Length: [Select in listing] (Total length from tip to tip; 3 inches will be hidden inside the wall)
• Width: 2 ½ inches
• Thickness: 1 inch

Vertical Tang Dimensions:

• Vertical Length: 11 inches (5.25 inches above and 5.25 inches below the horizontal piece)
• Width: 2 ½ inches
• Thickness: ¼ inch
• Hole Diameter: ¼ inch (3 screw holes above and 3 below the horizontal piece)

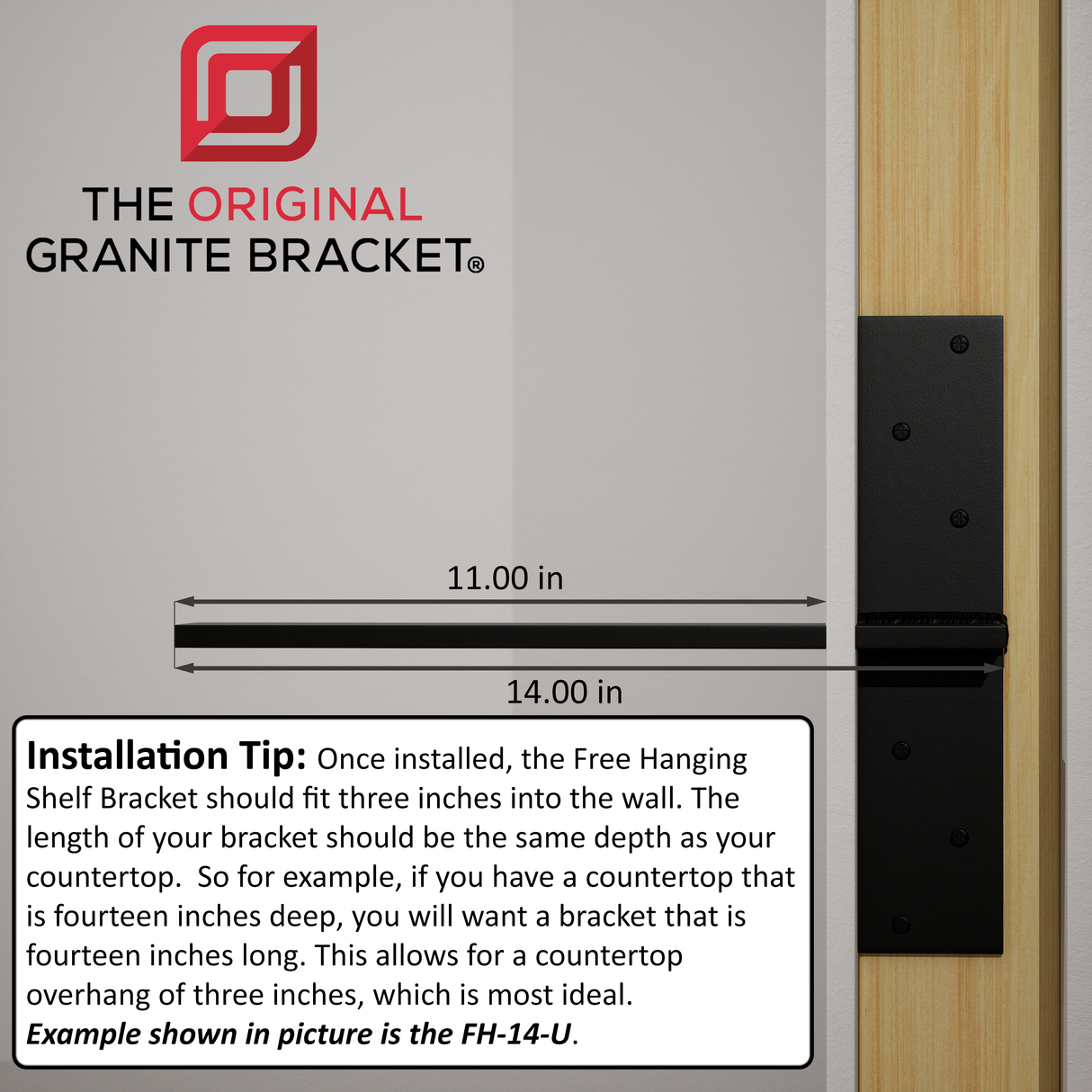

How to Choose the Right Bracket Size:

When measuring, the horizontal piece is measured from tip to tip. Keep in mind that approximately 3 inches of the bracket will be secured inside the wall. For example, if you have a 24-inch vanity, select a 24-inch bracket—3 inches will be inside the wall, leaving 21 inches to support the vanity with a slight overhang.

For detailed installation instructions, refer to our Installation Guide for The Original Vanity Bracket®.

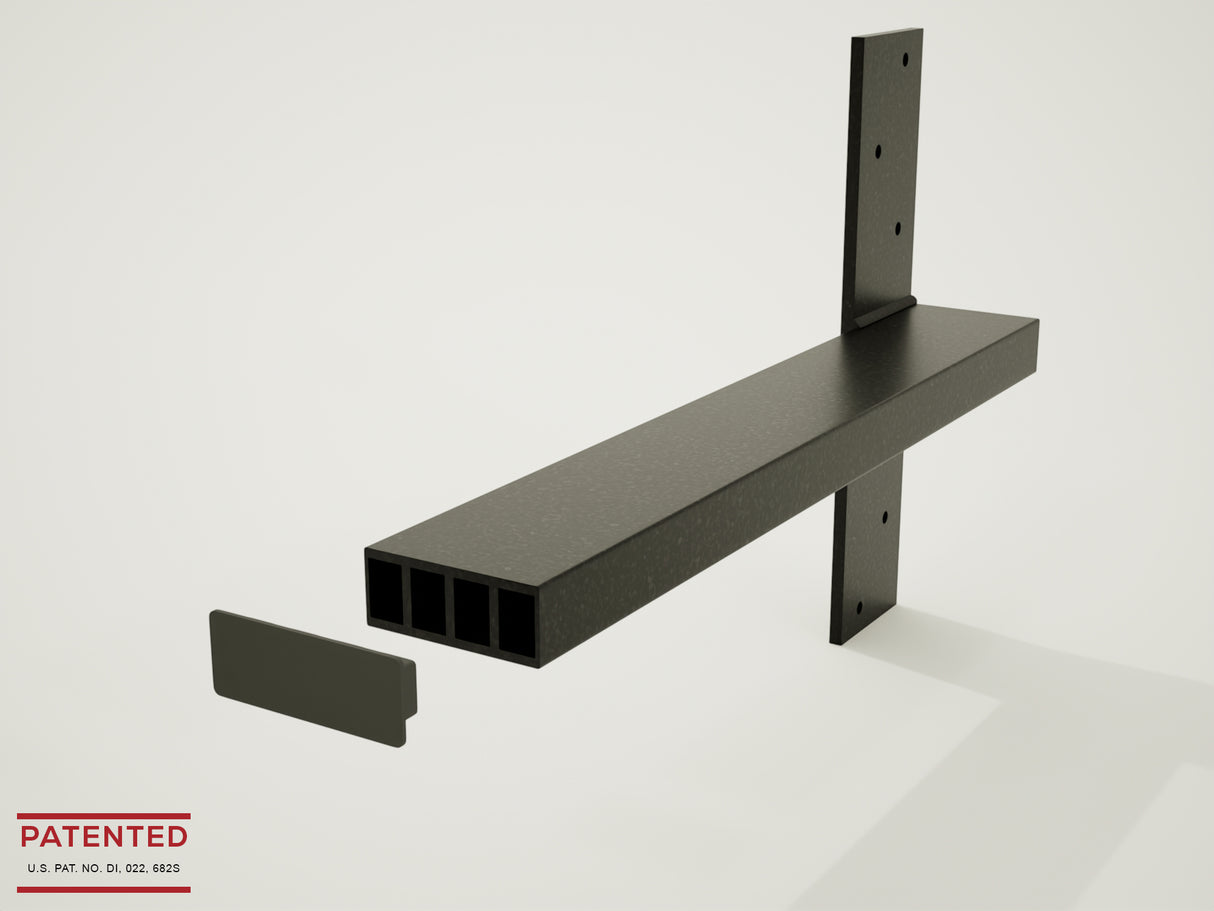

Features of The Original Vanity Bracket®:

• Hardware Included

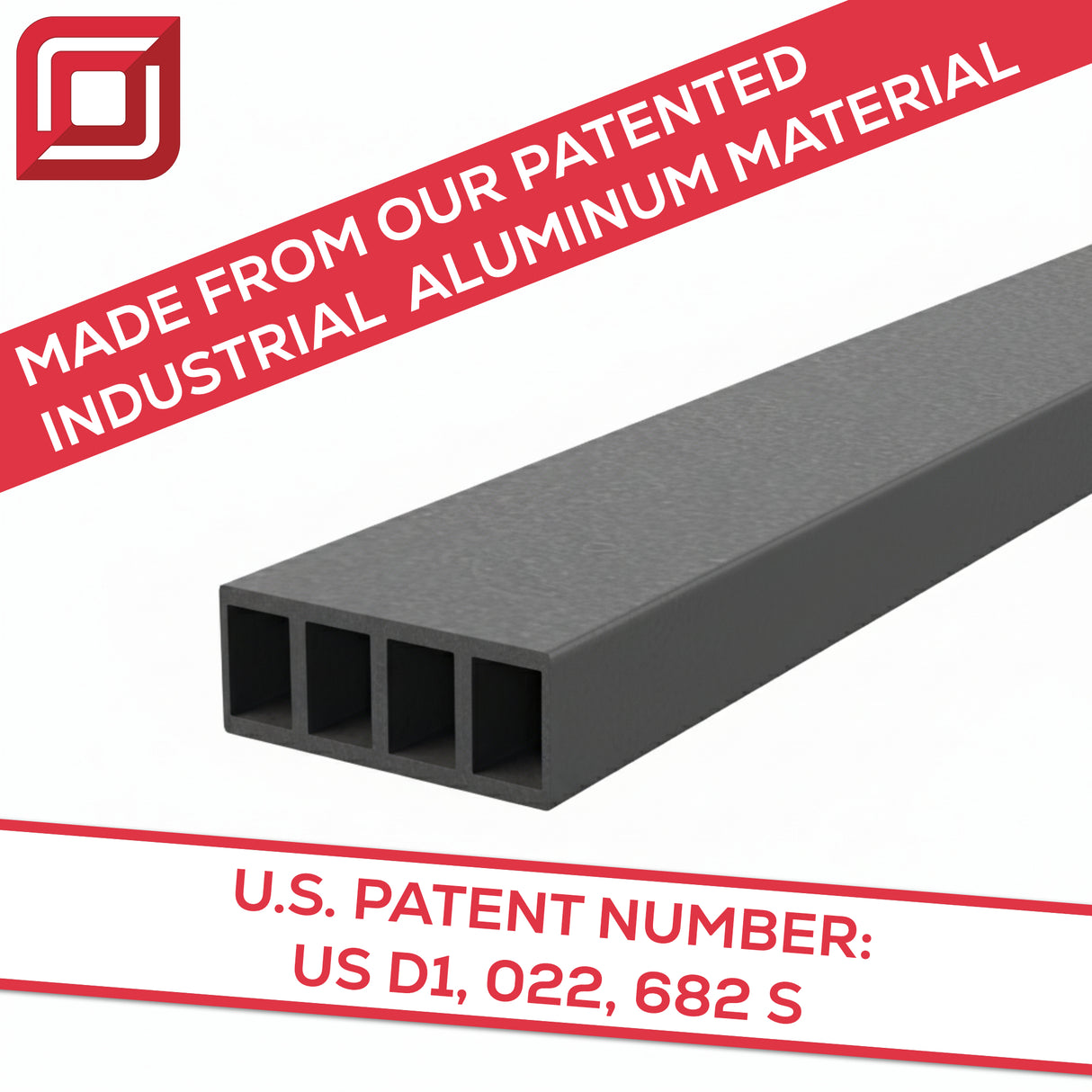

• Made from Industrial Ribbed Aluminum – Rust-proof and ideal for moist environments
• Virtually invisible, creating a floating appearance for your vanity
• Easy to install, with screw holes on both the top and bottom of the vertical tang

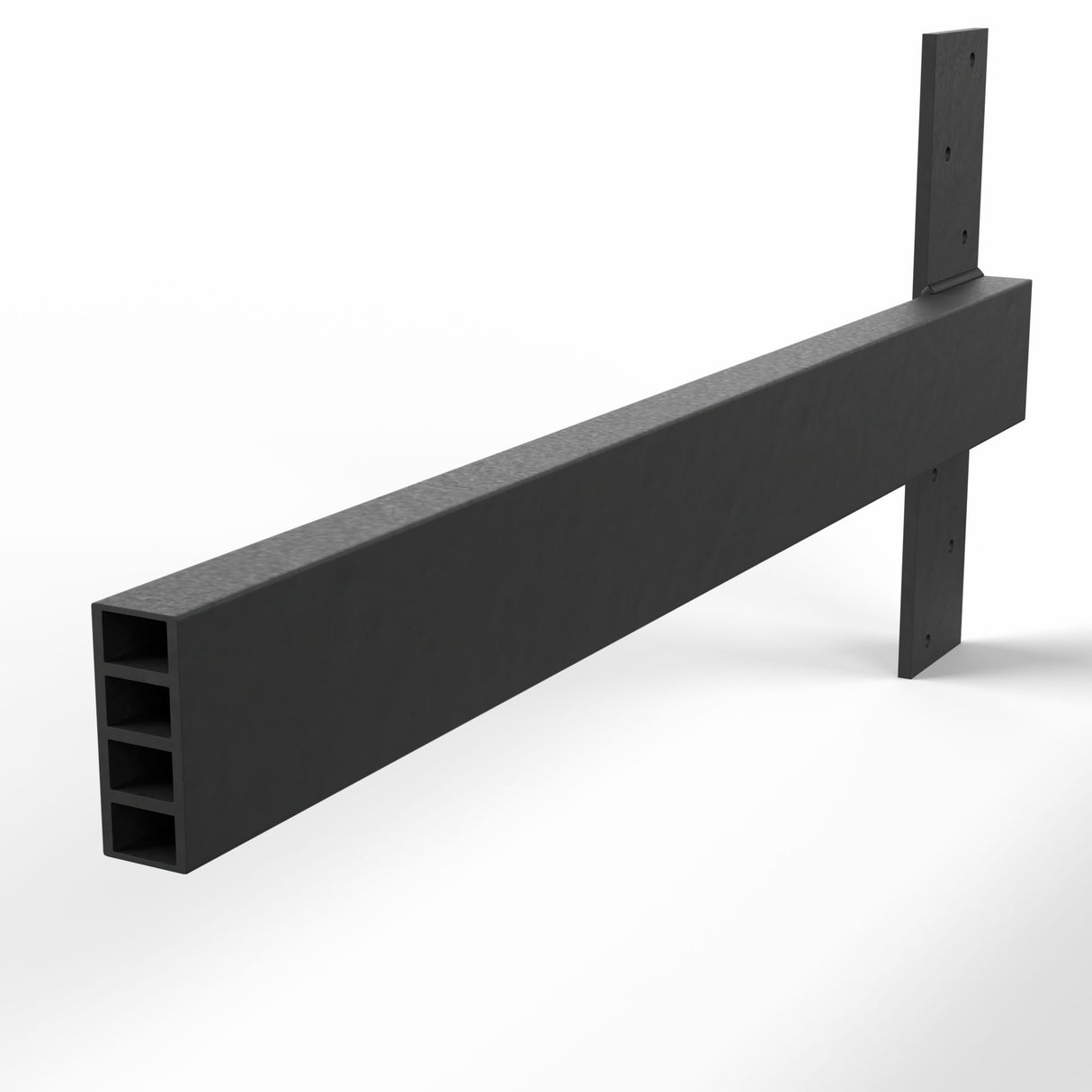

• Finished with matte black paint, though it can be repainted with anti-rust spray if needed
• Welded for maximum strength
• Made in the USA
• Limited Lifetime Warranty
• Patented - No. D1, 022, 6825

Important Information:

• Free Ground Shipping for orders over $100
• Orders with over 20 brackets may have extended lead times; check shipping info for details
• Custom sizes available upon request

For any additional questions or special order inquiries, please call us at 904-217-8490 or email sales@cswpros.com.
