Name: The Original™ Floating Vanity Bracket®
Brand: The Original Granite Bracket
SKU: VB-12-H
Price: 77.95 USD
Availability: InStock

1 17

Description

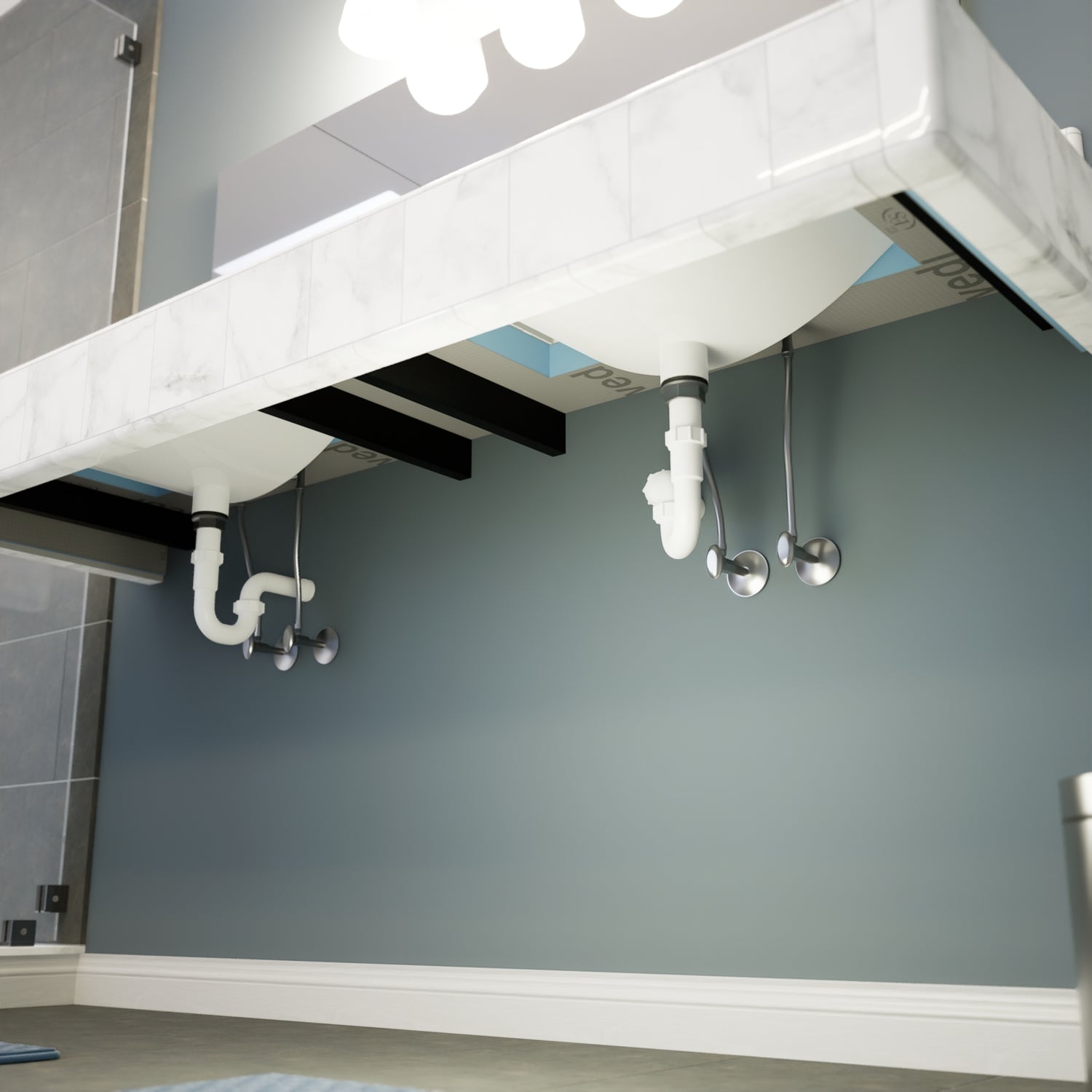

Invisible Support for Floating Vanities – Now Available in Horizontal & Vertical Variants

Introducing The Original™ Floating Vanity Bracket®, now available in both vertical and horizontal designs to provide the ultimate concealed support for floating vanities. Whether you need a vertically mounted solution or a horizontally mounted bracket, both options deliver unmatched strength and a seamless floating appearance.

Designed for Strength & Durability

Crafted from Industrial Ribbed Aluminum, The Original™ Floating Vanity Bracket® is rust-proof and moisture-resistant, making it the ideal support solution for bathrooms, wet areas, and even outdoor installations. Designed for secure attachment to 2"x4" wood studs before drywall or tile installation, these brackets provide strong, concealed reinforcement to keep your vanity securely in place. If mounting to metal studs, please refer to our installation video for special instructions. The new vertical version is perfect for vanities that have a smaller space but where you still need reinforced strength.

Two Variants to Fit Your Needs

Horizontal Floating Vanity Bracket

Horizontal Piece Length: [Select in listing] (Total length from tip to tip; 3" will be hidden inside the wall)
Width: 2½"
Thickness: 1"

Vertical Tang Dimensions:

Height: 11" (5.25" above and 5.25" below the horizontal piece)
Width: 2½"
Thickness: 1/4"
Hole Diameter: 1/4" (3 screw holes above and 3 below the horizontal piece)

Supports Overhangs from 18" to 26"

New! Vertical Floating Vanity Bracket

For those who need a low-profile mounting option, the vertical bracket provides strong, invisible support while maintaining a sleek floating effect.
Length: Choose from 12" to 32" (customer-selected)
Width: 1"
Height: 2.5"

Vertical Tang Dimensions:

Height: 11"
Width: 2.5"

Choose the horizontal version for installations where vertical reinforcement is not required.

How to Choose the Right Bracket Size

When selecting a bracket, keep in mind that approximately 3 inches will be secured inside the wall.
Example: If you have a 24" vanity, select a 24" bracket—3" will be hidden, leaving 21" of support with a slight overhang.

Key Features:

✔ Hardware Included
✔ Made from Industrial Ribbed Aluminum – Rust-proof, moisture-resistant, and incredibly strong
✔ Virtually Invisible Design – Creates a clean, floating look
✔ Easy Installation – Screw holes for secure attachment
✔ Matte Black Finish – Can be repainted with anti-rust spray if needed
✔ Welded for Maximum Strength
✔ Made in the USA
✔ Limited Lifetime Warranty
✔ Patented - No. D1, 022, 6825

⚠ Individual Pricing: The price listed is per bracket. Images with multiple brackets are for illustration purposes only.

Upgrade your bathroom with The Original™ Floating Vanity Bracket, now available in vertical and horizontal variants for the perfect concealed support solution.

Helpful Information & Downloads:

Shipping information will be available upon order placement.
For orders exceeding 20 brackets or a general breakdown of how our shipping works check out our Shipping Policy for lead time.
Although we have standard sizes, we can manufacture special order brackets with specifications to your request.

Have questions or need assistance? Contact our dedicated customer service team at 904-217-8490 or email sales@cswpros.com.

Individual Pricing: The price listed is for one bracket. Images showing multiple brackets are for illustration purposes only. Be sure to order the quantity needed for your project.
