T Brace Countertop Support Bracket

$50.30

Size
Material

Delivery and Shipping

Free Shipping on orders over $100.

Click Here for more shipping information.

Description

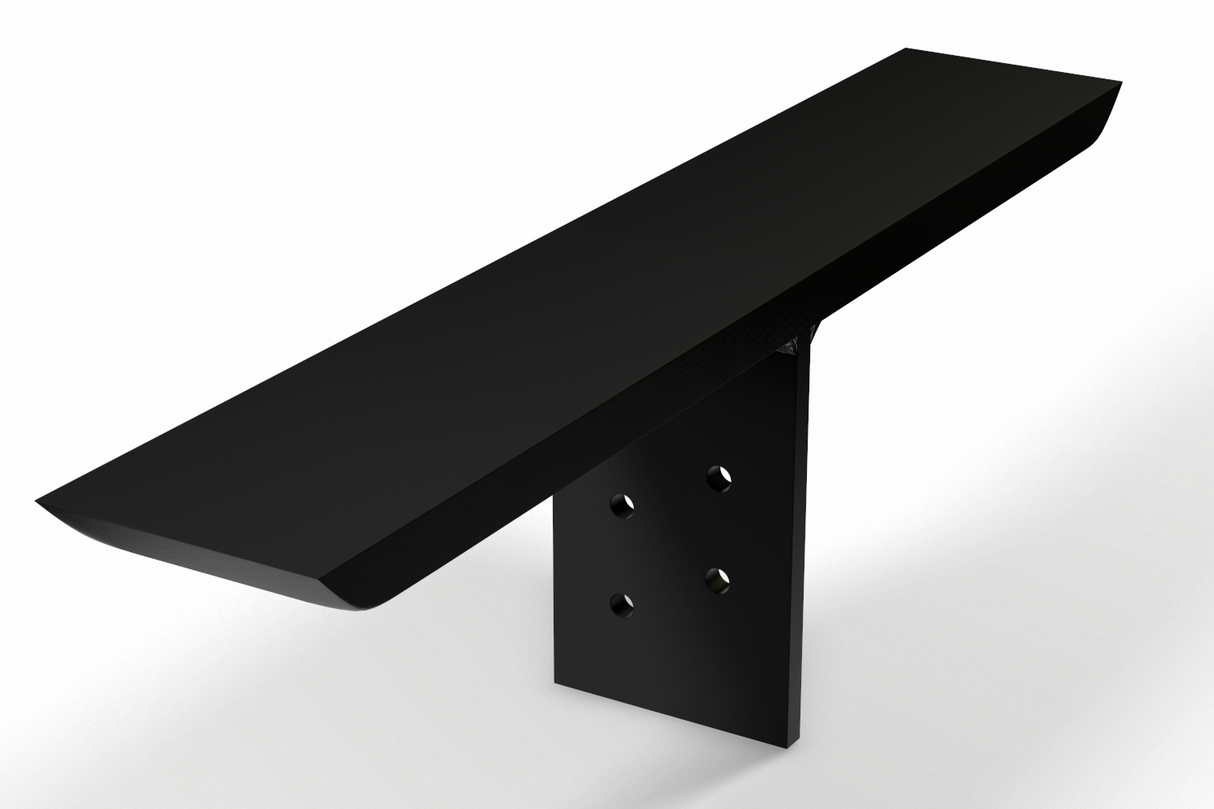

The Perfect Concealed Countertop Overhang Bracket

For countertop support, the T-Bracket Hidden Granite Bracket is the bracket support which will use the weight of the granite, to support your big granite countertop overhang on an island.

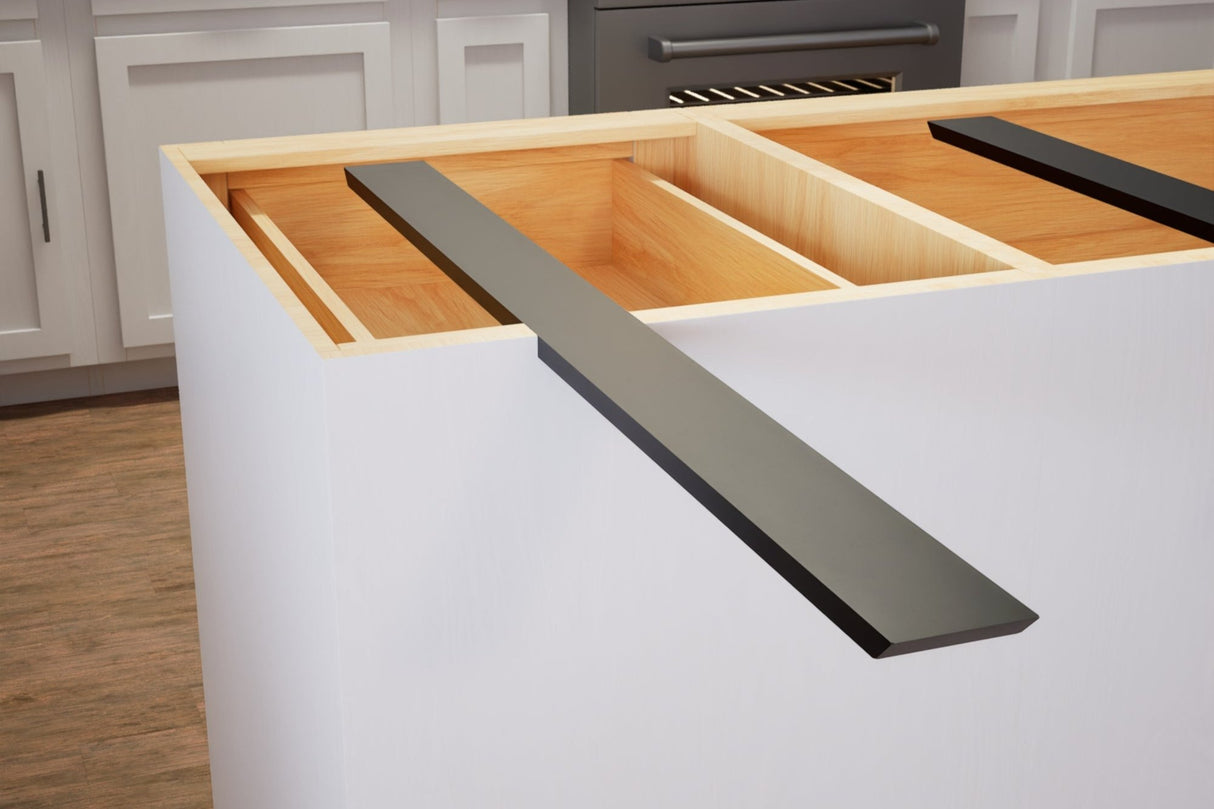

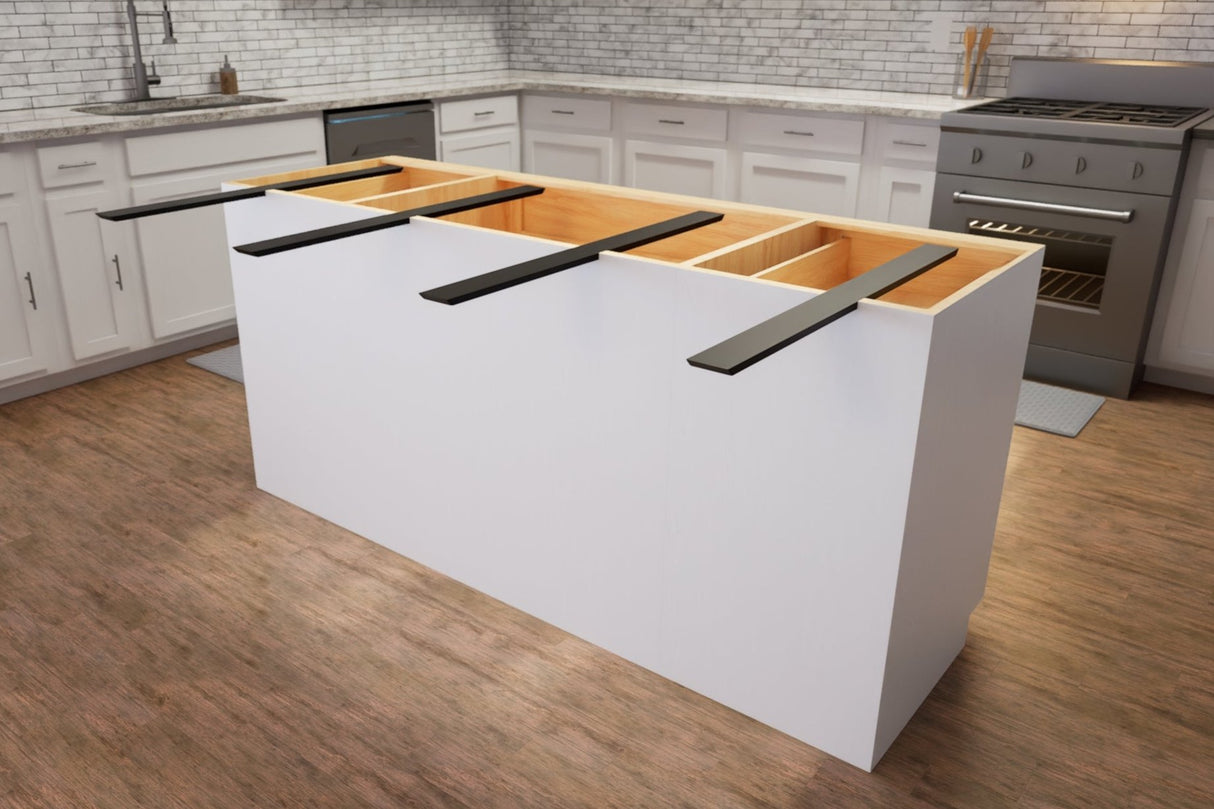

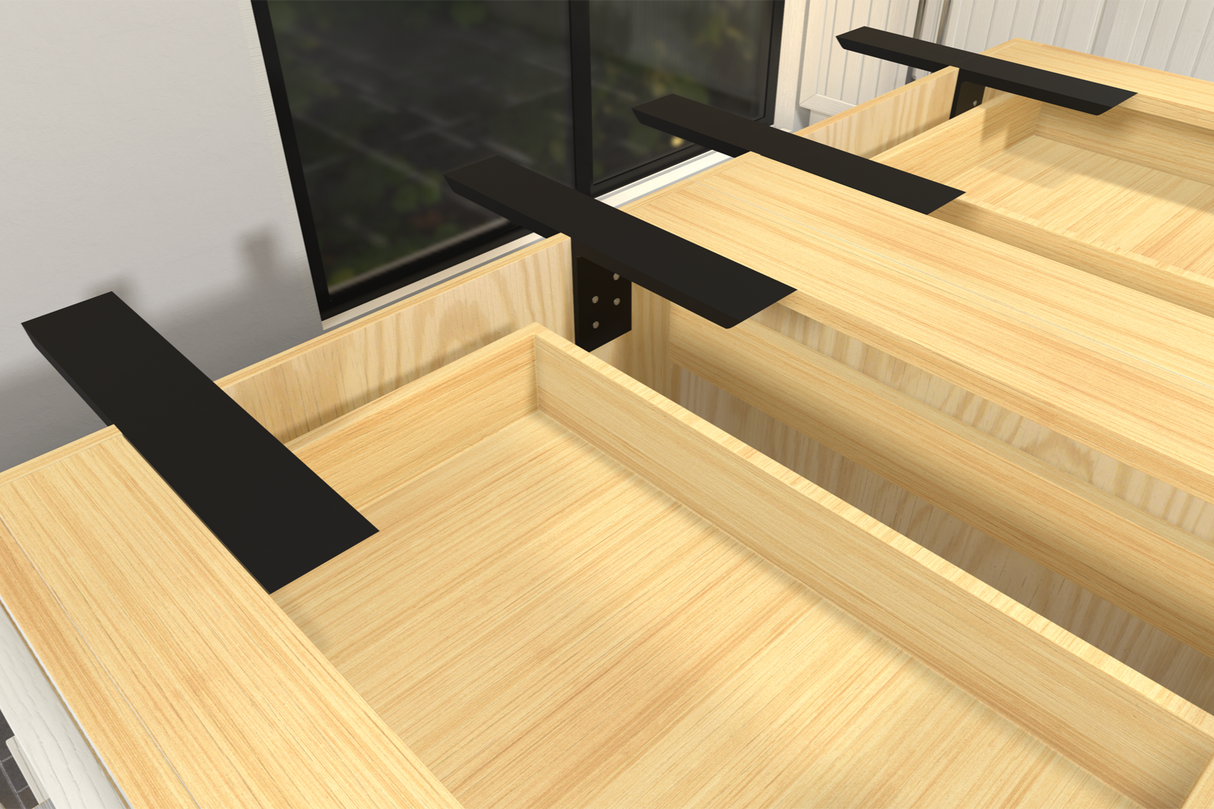

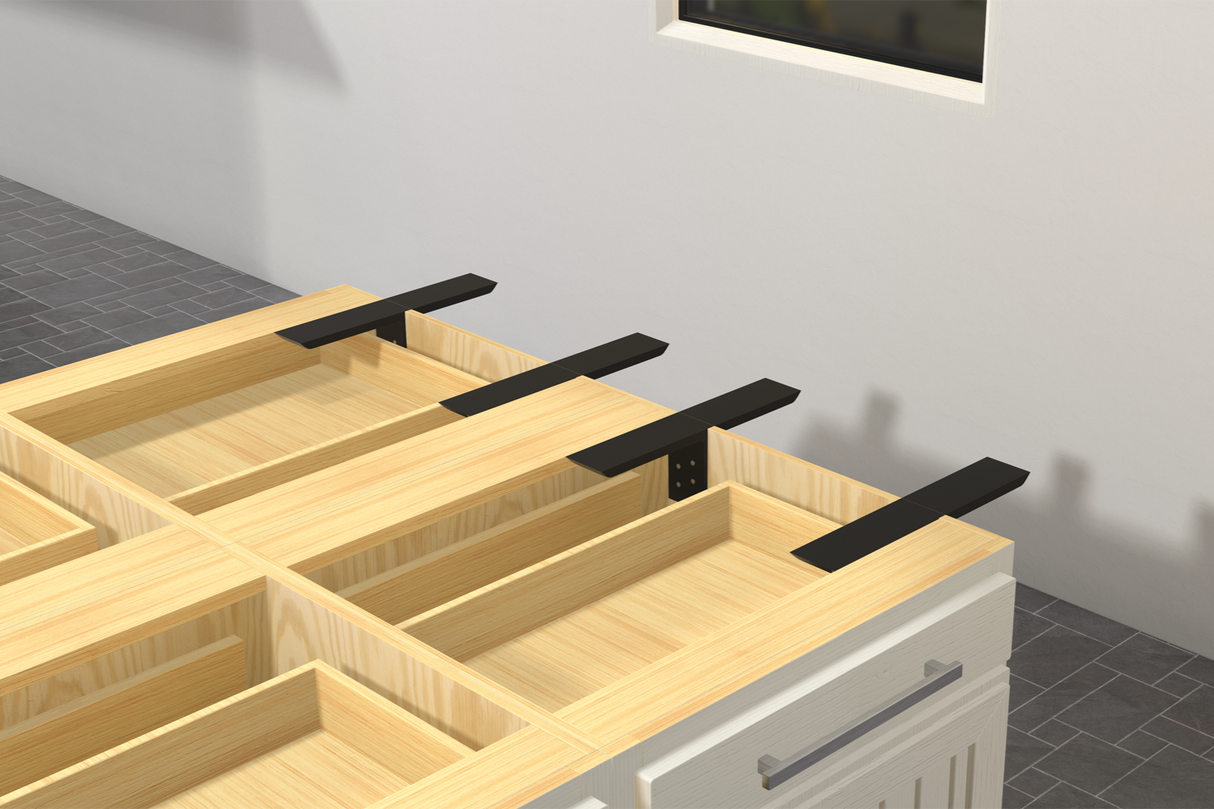

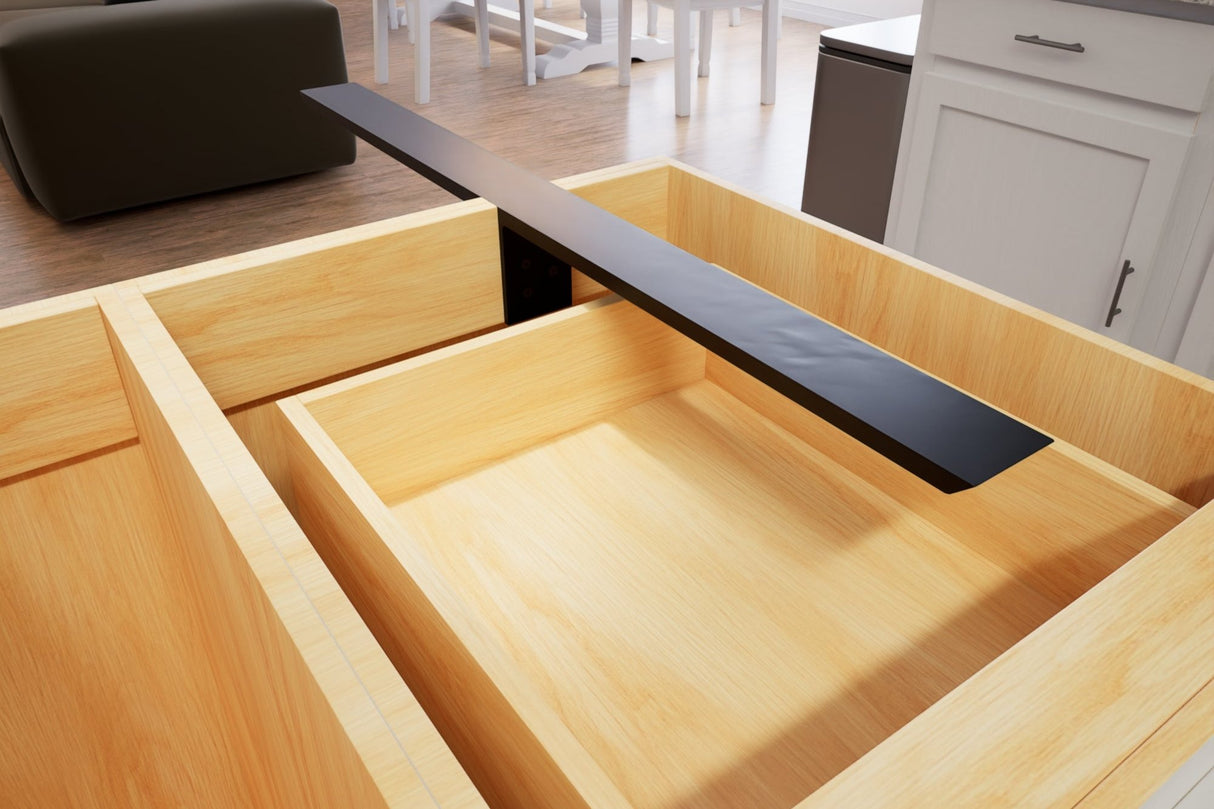

This Bracket lies across the top of the cabinet, half of the bracket will be inside of the cabinet and the other half will be exposed under the overhang. The vertical angle drops down on the inside back of the cabinets and is used to hold the T- Bracket in place until the granite is put in place. This will give your granite the appearance of floating once installed.

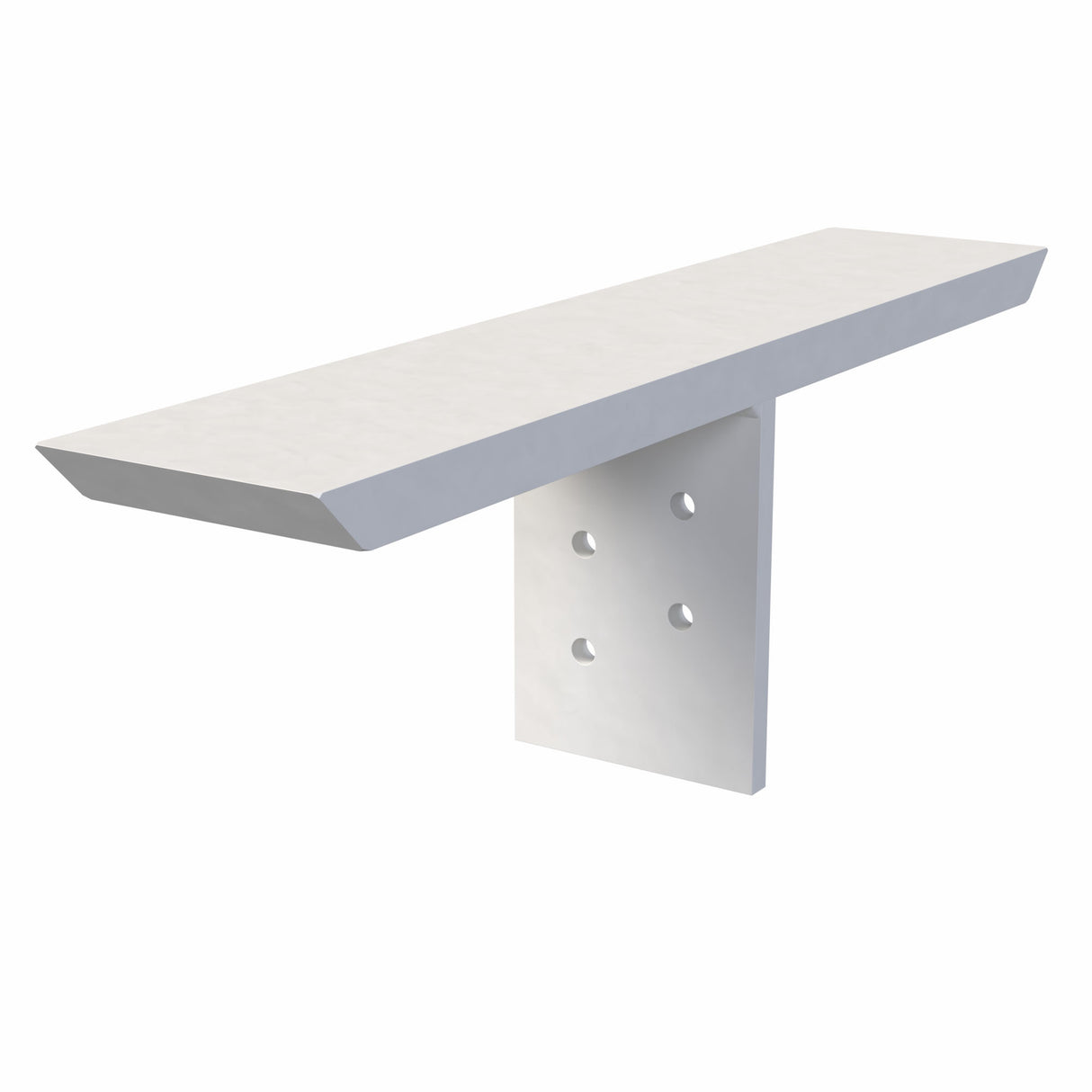

NOTE: The vertical piece [tang] is welded in the center of the horizontal piece. Therefore, if you have a 10-inch bracket the vertical piece [tang] is directly in the center of the bracket, giving you approximately 5 inches on each side of the T-Bracket. Meaning there will be approximately 5 inches inside the cabinet and 5 inches on your overhang. {See above video for ordering tips}

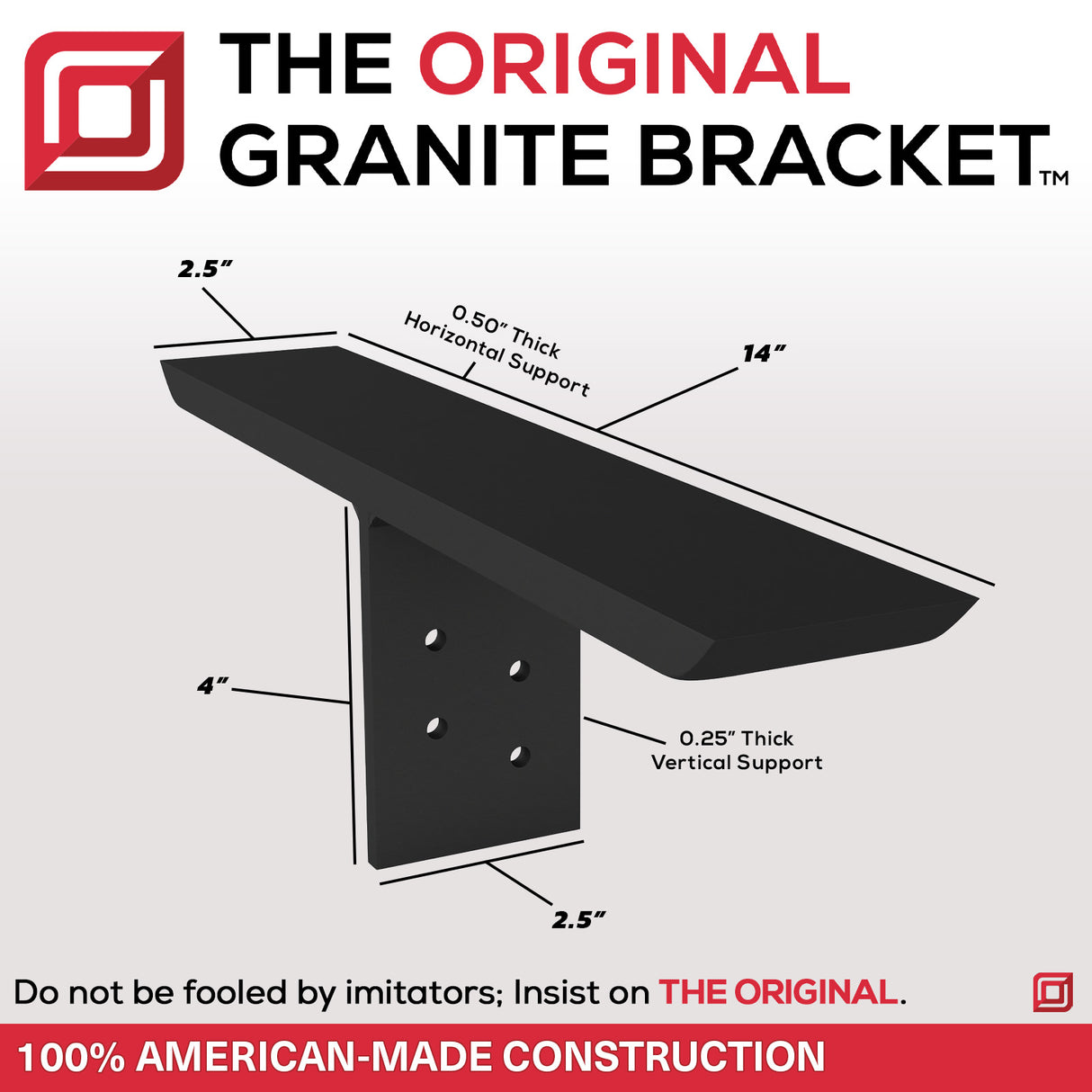

Dimensions:

Length: [You Choose]

Width: 2 ½ inches

Thickness: ½ inch

Hole Diameter: 1/4 inch

Exceptional Features:

  • Hardware Included.

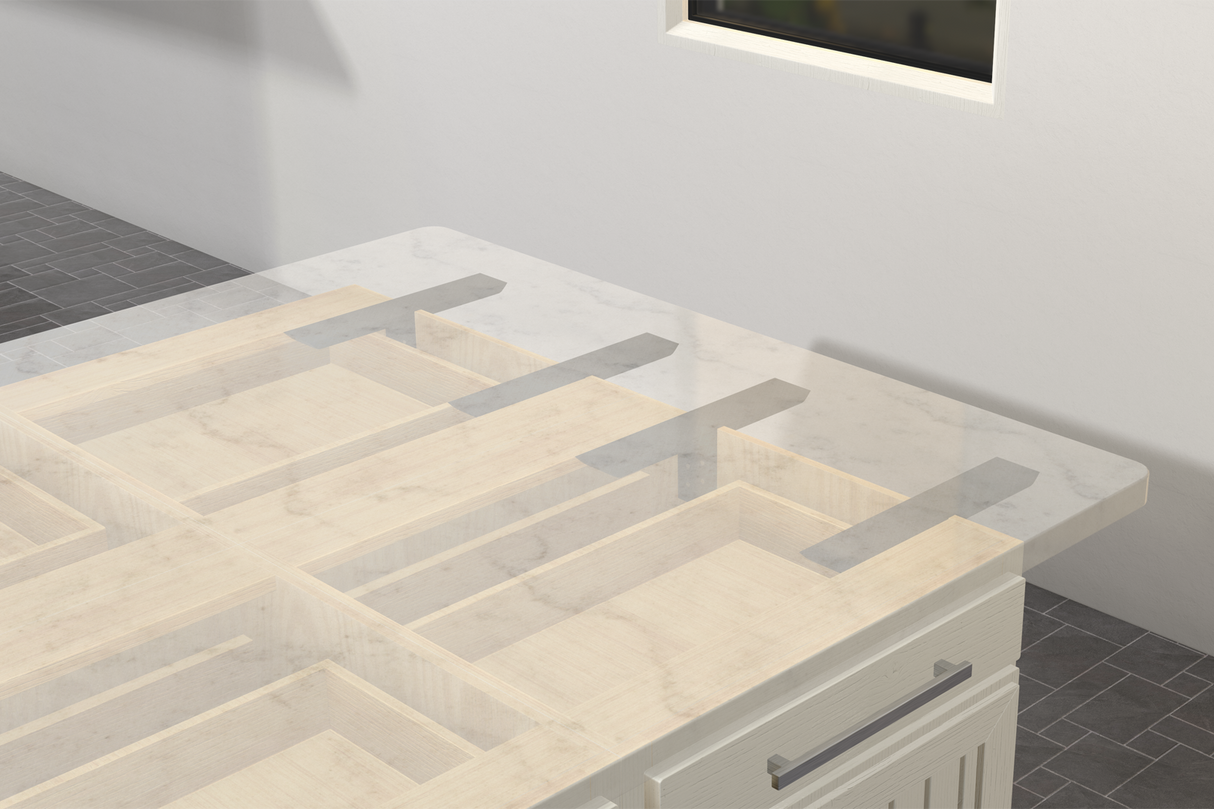

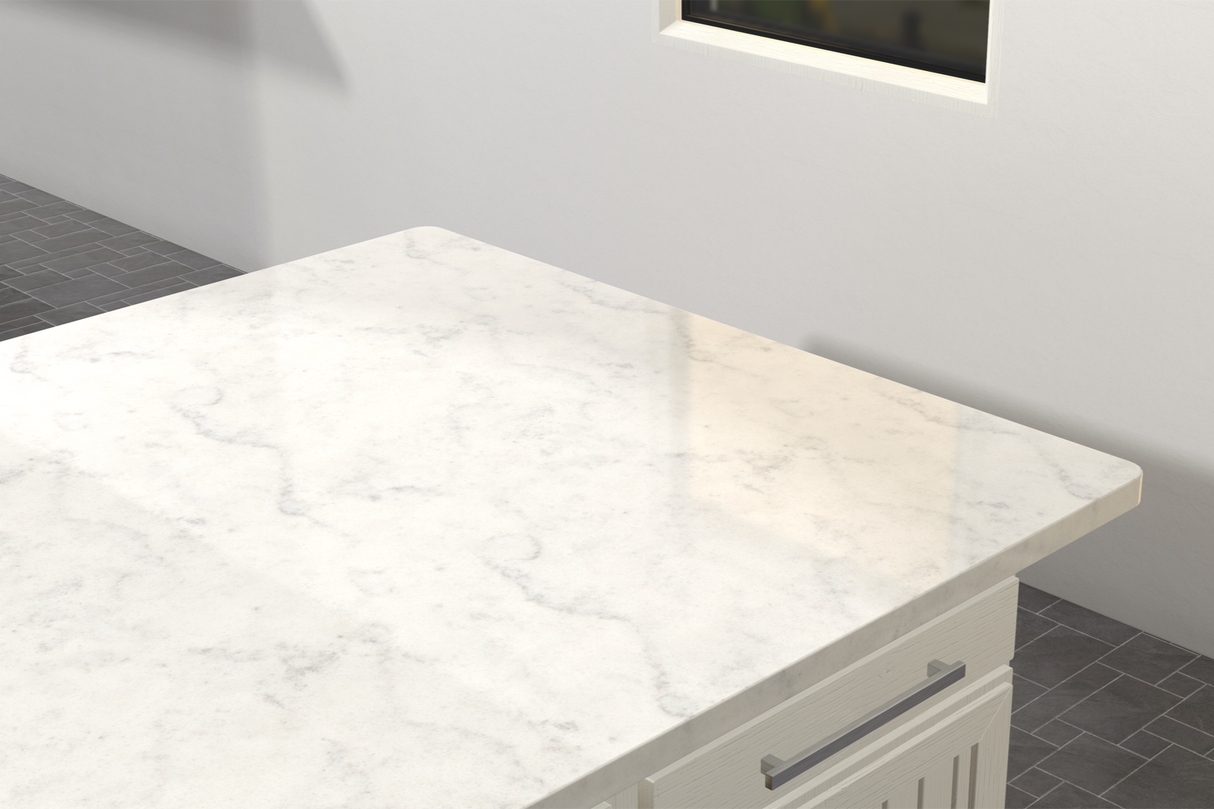

  • Virtually invisible giving your granite countertop the appearance of floating.
  • Non-intrusive. No corbels needed. No knee-knocking.
  • Completely open space allowing room for chairs and legs.
  • An economical way to protect your countertop investment.
  • Easy to install.
  • Made of ½ inch thick by 2 ½ inches wide Solid American Metal welded for strength.
  • Bracket end has beveled edge for safety.
  • Screw holes are staggered on the vertical piece.
  • Brackets are paintable with anti-rust paint.
  • Made in the USA.
  • Limited Lifetime Warranty**
  • All of our Aluminum brackets are painted with a double coat of rust inhibitor black paint.

Helpful Information & Downloads:

  • Shipping information will be available upon order placement.
  • For orders exceeding 20 brackets or a general breakdown of how our shipping works check out our Shipping Policy for lead time.
  • Although we have standard sizes, we can manufacture special order brackets with specifications to your request.

Have questions or need assistance? Contact our dedicated customer service team at 904-217-8490 or email sales@cswpros.com.
