Free Hanging Shelf Bracket in Industrial, Aluminum or American Made Steel

Ultimate Floating Shelf Support: The Free Hanging Shelf Bracket

Elevate your storage and display solutions with The Free Hanging Shelf Bracket, designed to provide seamless support for floating shelves, mantels, desks, and more. Crafted with precision and available in three robust materials—Steel, Aluminum, and Industrial—this bracket ensures both strength and aesthetic appeal for any project.

Material Options:

Choose from three durable materials to suit your specific needs:

• Steel (Interior): Ideal for indoor applications, offering solid support and durability.
• Aluminum (Exterior): Rust and waterproof, perfect for outdoor or humid environments.
• Industrial: Features a 1-inch thick ribbed aluminum design, offering maximum reinforcement for demanding applications.

Product Applications:

The Free Hanging Shelf Bracket is versatile enough to handle a variety of installations:

• Shower Benches: Use The Original Shower Bench Bracket®.
• Floating Vanities: Opt for our Free Floating Vanity Bracket®.
• Floating Benches or Seats: Choose the Industrial Free Hanging Shelf Bracket® for heavy-duty support.

Versatile Uses:

Perfect for a range of applications, including floating shelves, mantels, hearths, and desks. This bracket mounts directly to 2x4 wood studs inside the wall before sheetrock installation. For metal studs, refer to our installation video. Ensure the bracket is mounted into wood studs, and secure to each 2x4 stud for maximum stability.

Sizing Guide:

Determining the correct size bracket is crucial for a secure installation:

• Measure the horizontal piece from tip to tip.
• Include the portion that will be inside the wall (approximately 3 inches).
• Example: For a 12-inch wide shelf, leave 2-4 inches from the outer edge plus the 3 inches inside the wall, resulting in a 12-inch shelf bracket.

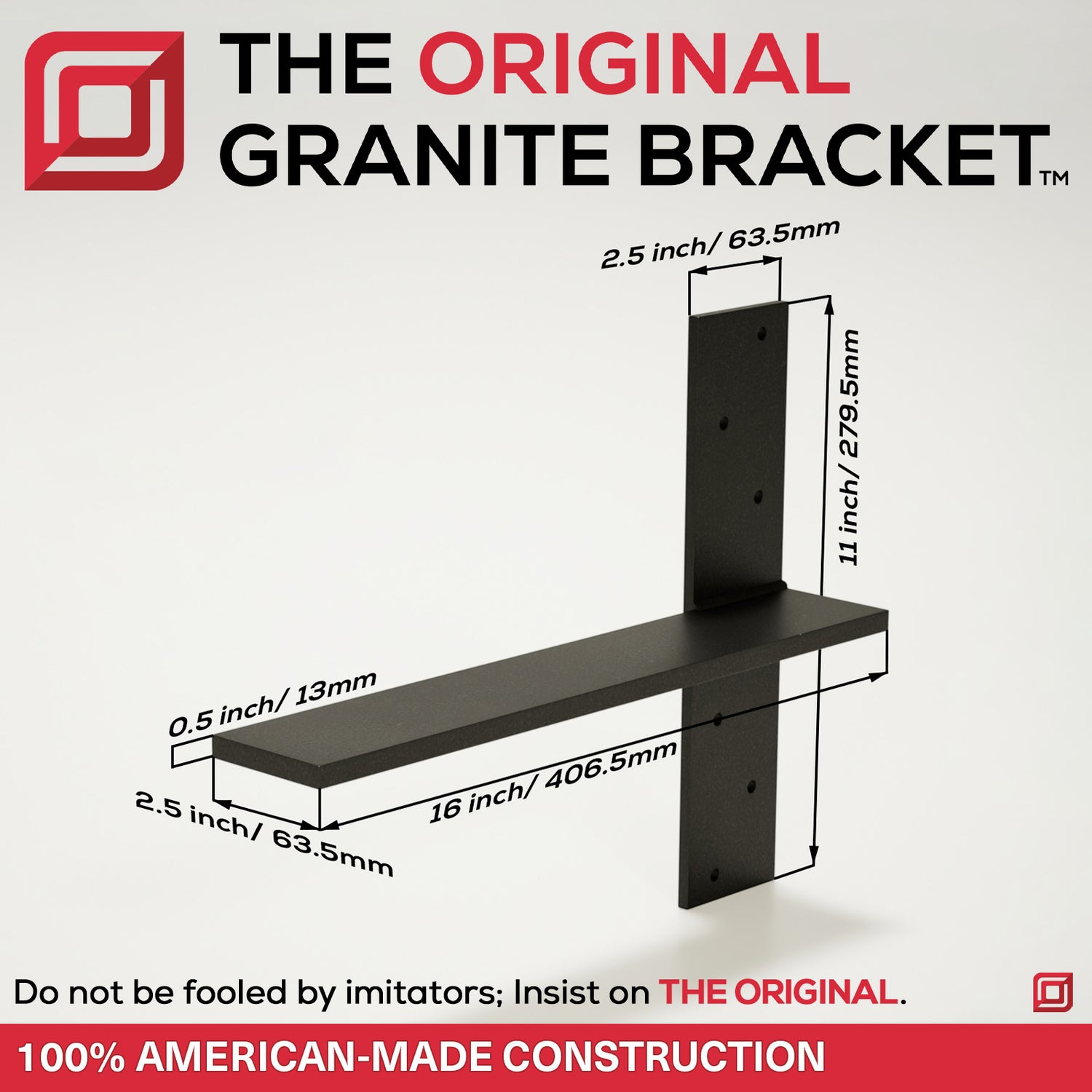

Dimensions:

• Horizontal Piece:

- Length: [You Choose]

- Width: 2-1/2 inches

- Thickness: 1/2 inch (1 inch for Industrial)

• Vertical Tang:

- Length: 11 inches (5.25 inches above and below the horizontal piece)

- Width: 2-1/2 inches

- Thickness: 1/4 inch

 Hole Dimensions: 1/4 inch (3 holes above and 3 holes below the horizontal piece)

Exceptional Features:

• Includes hardware
• Virtually invisible for a floating appearance
• Easy to install with screw holes on top and bottom of the vertical piece
• Welded for solid strength
• Made of American Steel or Solid Aluminum, painted with anti-rust matte black paint
• Made in the USA
• Limited Lifetime Warranty
• Patented - No. D1,041,3005

Transform your spaces with the unparalleled strength and discreet design of The Free Hanging Shelf Bracket. Bracket spacing recommendations (16-20 inches apart)

Helpful Information & Downloads:

• Shipping information will be available upon order placement.
• For orders exceeding 20 brackets or a general breakdown of how our shipping works check out our Shipping Policy for lead time.
• Although we have standard sizes, we can manufacture special order brackets with specifications to your request.

Have questions or need assistance? Contact our dedicated customer service team at 904-217-8490 or email sales@cswpros.com.
