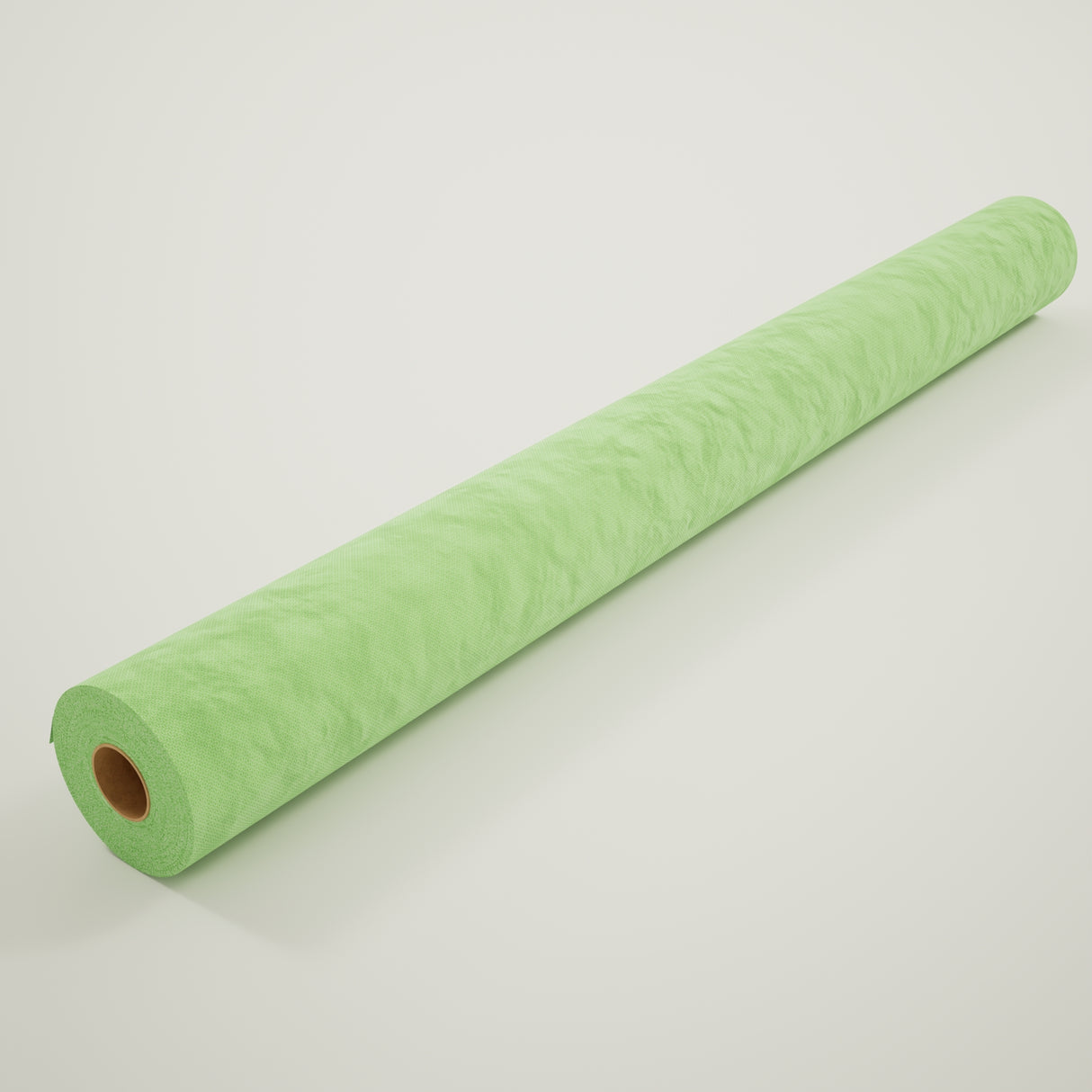

TruGard Waterproof Membrane Roll

TruGard Vapor-Shield System

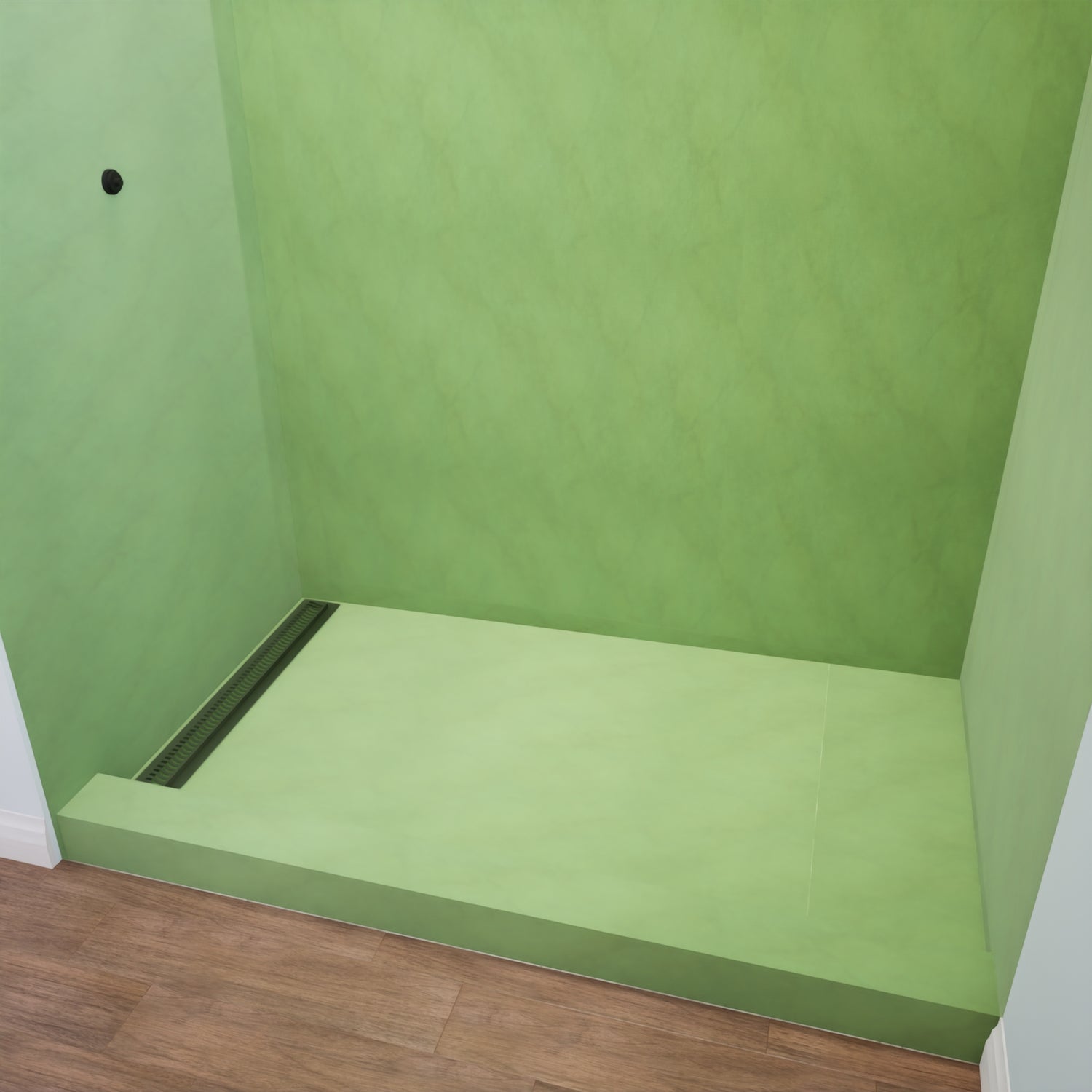

A fully bonded, watertight system for showers, tubs, and steam showers. Unlike traditional shower pan liners, the Vapor-Shield membrane is applied directly over the sloped mortar bed, preventing moisture buildup and mold growth.

Why Choose TruGard?
✅ Leak-Proof Design: Overlapping layers ensure long-term water protection.
✅ Redundant Fail-Safes: Inside/outside corner seals, perimeter sealant, and a reinforced floor-to-wall intersection.
✅ Fast & Easy Installation: Reduces labor time compared to traditional methods.

Once installed, your shower is protected against water damage, mold, and mildew—ensuring a low-maintenance, long-lasting waterproofing solution.

Easy Installation Guide

1. Clean & Cut

• Clean all surfaces thoroughly.
• Cut the waterproofing membrane to fit, allowing for a 2-inch overlap between sections.

2. Apply Mortar & Press

• Spread modified thin-set mortar using a V-notched trowel.
• Firmly press the membrane into the mortar for secure adhesion.

3. Seal Seams & Corners

• Use TruSeal Sealant or thin-set mortar to bond overlapping sections.
• Apply Trugard Seals Kit to inside and outside corners for extra protection.

4. Pipe & Valve Seals

• Install pipe and valve seals from the Trugard Seals Kit around all penetrations.

5. Complete the Installation

• Once the mortar sets, your shower is fully waterproofed.
• Apply thin-set mortar over the membrane before tiling.
